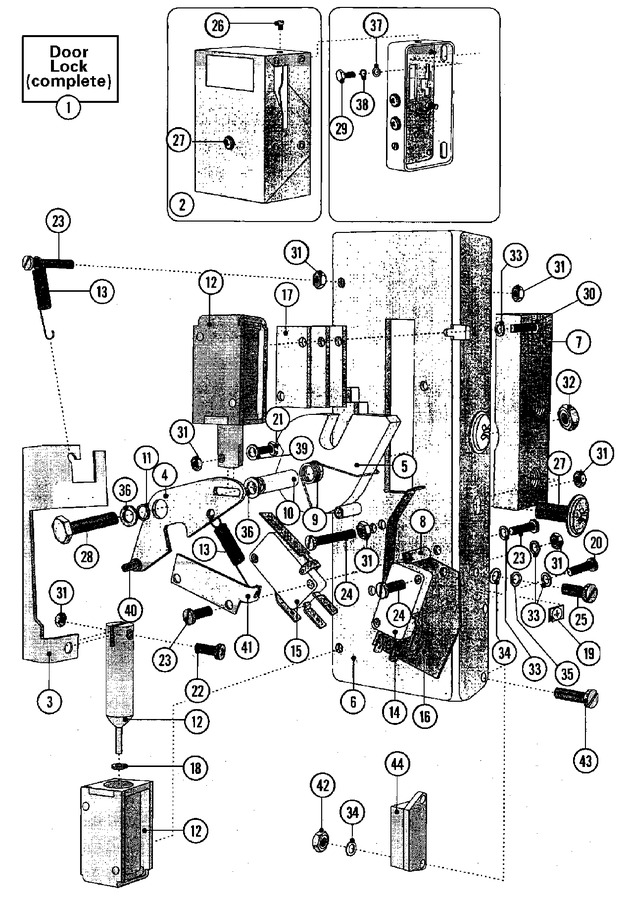

10 - Door Lock


11 - Soap Box


12 - Filling System


13 - Valves


14 - Control Panel


15 - Rear Panel


16 - Electrical Components


17 - Steam Supply


18 - Drain Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002700		Lock, Door	10	Appelez-nous	-
002	23002701		Cover, Door Lock	10	Appelez-nous	-
003	23002702		Gate	10	Appelez-nous	-
004	23002703		Link	10	Appelez-nous	-
005	23002704		Cam Lu	10	Appelez-nous	-
006	23002705		Element	10	Appelez-nous	-
007	23002706		Rising Section	10	Appelez-nous	-
008	NLA		Column	10	Appelez-nous	-
009	23002708		Spring	10	Appelez-nous	-
010	23002709		Tube	10	Appelez-nous	-
011	23002710		Ring	10	Appelez-nous	-
012	23002711		Coil	10	Appelez-nous	-
013	23002712		Spring	10	Appelez-nous	-
014	23002713		Microswitch	10	Appelez-nous	-
015	23002714		Microswitch	10	Appelez-nous	-
016	23002715		Insulation	10	Appelez-nous	-
017	23002716		Washer, Coil	10	Appelez-nous	-
018	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
019	NLA		Label, Earth	10	Appelez-nous	-
020	23002717		Screw (m3x6)	10	Appelez-nous	-
021	NLA		Screw (m3x10)	10	Appelez-nous	-
022	23001635		Screw (m3x14)	10	Appelez-nous	-
023	23002718		Screw (m3x16)	10	Appelez-nous	-
024	23002719		Screw (m3x20)	10	Appelez-nous	-
025	23002720		Screw (m4x8)	10	Appelez-nous	-
026	23002721		Screw (m4x12)	10	Appelez-nous	-
027	23002722		Screw (m6x12)	10	Appelez-nous	-
028	23002463		Screw (m6 X 30)	10	Appelez-nous	-
029	23002723		Screw (m8x22)	10	Appelez-nous	-
030	NLA		Screw (m3x12)	10	Appelez-nous	-
031	23002500		Washer, Lock	10	Appelez-nous	-
032	23002436		Nut (m6)	10	Appelez-nous	-
033	23002174		Washer (3.2)	10	Appelez-nous	-
034	23002725		Washer (3)	10	Appelez-nous	-
035	23002400		Washer	10	Appelez-nous	-
036	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
037	23002359		Washer (m6)	10	Appelez-nous	-
038	23002727		Washer (8) Lu	10	Appelez-nous	-
039	23002325		Washer	10	Appelez-nous	-
040	23002728		Pin	10	Appelez-nous	-
041	NLA		Holder, Coil	10	Appelez-nous	-
042	23002399		Nut(m4)	10	Appelez-nous	-
043	23002398		Screw (m4x16)	10	Appelez-nous	-
044	23002730		Seal	10	Appelez-nous	-
