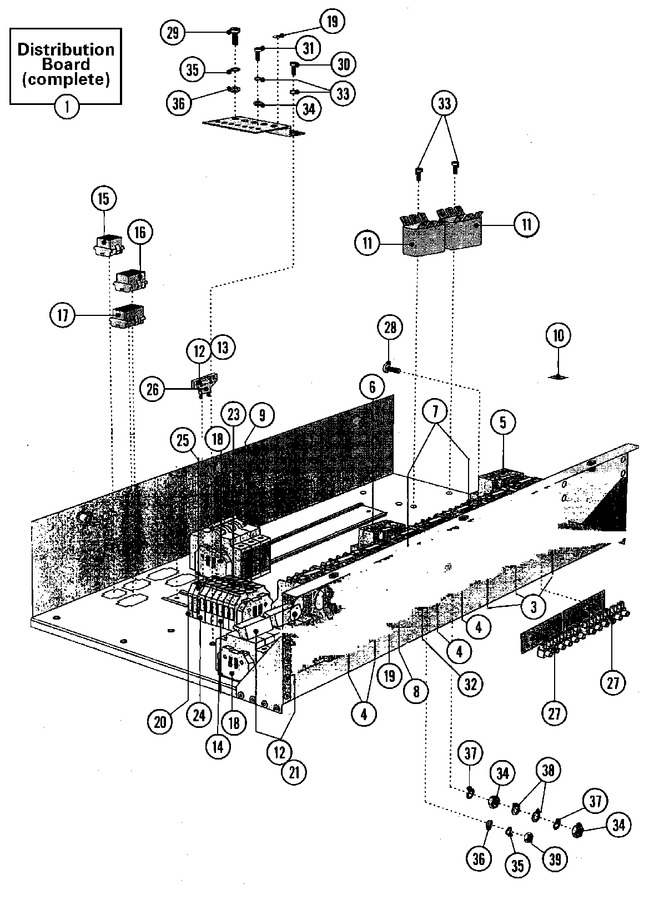

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003235		Board, Distribution (complete)	10	Appelez-nous	-
002	23002099		Cube, Earth	10	Appelez-nous	-
003	23001101		Contactor (lc1-d1201 M7)	10	Appelez-nous	-
004	23001102		Contactor (lc1-d1801 M7)	10		Immediately	$ 2,343.16
005	23001107		Relay, Thermal Overload(12-18a	10	Appelez-nous	-
006	23001108		Relay, Thermal Overload (7-10a	10	Appelez-nous	-
007	23001119		Mechanical Interlock, Contacto	10	Appelez-nous	-
008	23002796		Contactor (lc1-d1810 M7)	10	Appelez-nous	-
009	23001717		Breaker, Circuit	10	Appelez-nous	-
010	23003236		Plate, Index	10	Appelez-nous	-
011	23001518		Series 15 - No Longer Needed		Appelez-nous	-
011	NLA		Net Filter	10	Appelez-nous	-
012	23001463		Fuse (2a)	10	Appelez-nous	-
013	23002043		Fuse (4a)	10	Appelez-nous	-
014	23002797		Clamp	10	Appelez-nous	-
015	23001722		Board, Terminal (amp 9 Poles)	10	Appelez-nous	-
016	23002798		Board,terminal (12 Pole)	10	Appelez-nous	-
017	23001721		Board, Terminal (amp 15 Poles)	10	Appelez-nous	-
018	23002110		Terminal Wago	10			$ 242.60
019	NLA		Label, Earth	10	Appelez-nous	-
020	NLA		Cover (vast4-4)	10	Appelez-nous	-
021	23002801		Disconnector, Fuse (pst-10x38)	10	Appelez-nous	-
022	NLA		Insert, Roller Fuse	10	Appelez-nous	-
023	23002803		Bridge (19.116.217-02)	10	Appelez-nous	-
024	23003238		Cover	10	Appelez-nous	-
025	23003239		Clamp, Fuse Plug	10	Appelez-nous	-
026	23003240		Plug, Fuse	10	Appelez-nous	-
027	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
028	23001609		Screw (m4x12)	10	Appelez-nous	-
029	NLA		Screw (m4x10)	10	Appelez-nous	-
030	23002805		Screw (m4x16)	10	Appelez-nous	-
031	23001733		Screw (m6x10)	10	Appelez-nous	-
032	23002806		Screw (m6 X 25)	10	Appelez-nous	-
033	NLA		Screw (st4.2 X 13)	10	Appelez-nous	-
034	23001515		Nut (m6)	10	Appelez-nous	-
035	23002400		Washer	10	Appelez-nous	-
036	23002725		Washer (3)	10	Appelez-nous	-
037	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
038	WP311093		Washer (6)   (Replaces: 23002726)	10			$ 7.25
040	23001115		Insulation Paper	10	Appelez-nous	-
041	NLA		Passage, Cable (22x2)	10	Appelez-nous	-
