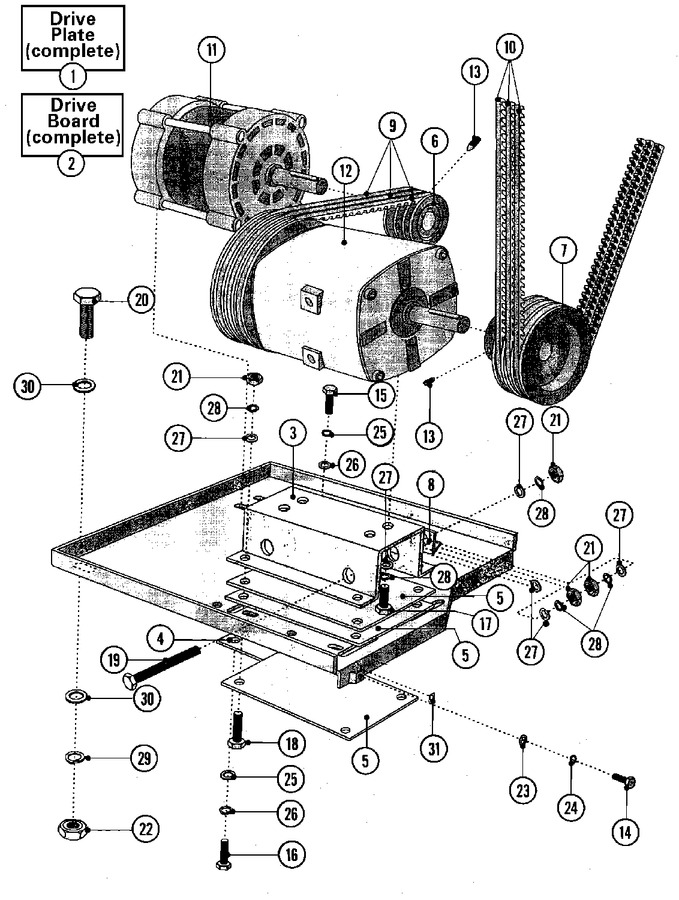

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003216		Plate, Drive (complete)	10	Appelez-nous	-
002	23003217		Board, Drive (complete)	10	Appelez-nous	-
003	23003218		Holder, Motor	10	Appelez-nous	-
004	NLA		Washer, Motor	10	Appelez-nous	-
005	NLA		Washer, Motor (spin)	10	Appelez-nous	-
006	23003221		Pulley, Wash Motor	10	Appelez-nous	-
007	23003222		Pulley, Spin Motor	10	Appelez-nous	-
008	NLA		Bracket	10	Appelez-nous	-
009	23001907		V-belt (spz962)	10	Appelez-nous	-
010	23001657		V-belt (2287mm)	10			$ 51.56
011	23003084		Motor, Wash (208-240v, 60hz)	10	Appelez-nous	-
012	23003085		Motor, Spin (208-240v, 60hz)lu	10	Appelez-nous	-
013	23001658		Screw (m6x10)	10			$ 18.77
014	23002353		Screw (m6x12)	10	Appelez-nous	-
015	23002475		Bolt (m8x20)	10			$ 13.66
016	23002434		Screw (m8x30)	10	Appelez-nous	-
017	23002648		Screw (m10x20)	10	Appelez-nous	-
018	23002987		Screw (m10x30)	10	Appelez-nous	-
019	23001660		Screw (m10x120)	10	Appelez-nous	-
020	23002661		Screw (m12x35)	10	Appelez-nous	-
021	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
022	NLA		Nut (m12)	10	Appelez-nous	-
023	23002129		Washer (m4)	10	Appelez-nous	-
024	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
025	23002653		Washer (8/6)	10	Appelez-nous	-
026	23002358		Washer M8	10	Appelez-nous	-
027	23002655		Washer (10.5)	10	Appelez-nous	-
028	23002654		Washer (10)	10	Appelez-nous	-
029	23002658		Washer (12)	10	Appelez-nous	-
030	23001292		Washer (13)	10	Appelez-nous	-
031	NLA		Label, Earth	10	Appelez-nous	-
