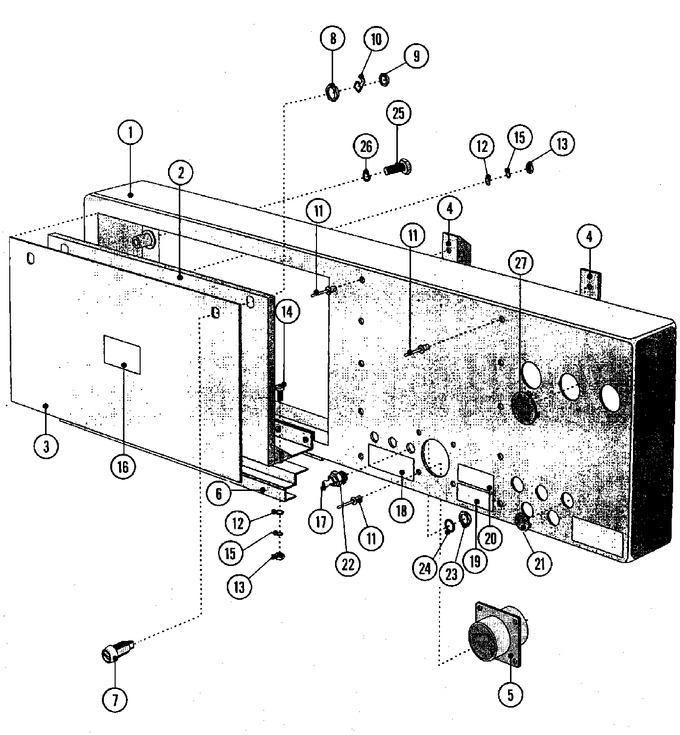

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002783		Panel, Rear	10	Appelez-nous	-
002	23002784		Cover, Rear Panel	10	Appelez-nous	-
003	23002785		Plate, Panel Cover	10	Appelez-nous	-
004	23002786		Frame, Pumps	10	Appelez-nous	-
005	23002787		Vent, Rear Panel	10	Appelez-nous	-
006	23002766		Support, Plate	10	Appelez-nous	-
007	23001583		Device, Locking	10	Appelez-nous	-
008	23001008		Lock Nut (large)	10			$ 186.62
009	23001011		Nut	10	Appelez-nous	-
010	23002451		Pawl	10	Appelez-nous	-
011	NLA		Rivet/crank (4 X 7.5)	10	Appelez-nous	-
012	23001610		Washer (4.3)	10	Appelez-nous	-
013	23002399		Nut(m4)	10	Appelez-nous	-
014	23002423		Screw (m4 X 10)	10	Appelez-nous	-
015	23002400		Washer	10	Appelez-nous	-
016	23002301		Label, El.flash	10	Appelez-nous	-
017	23002788		Head, Greasing	10	Appelez-nous	-
018	23002793		Plate (greasing)	10	Appelez-nous	-
019	23002053		Label, Warning Vent Out	10	Appelez-nous	-
020	NLA		Plate (pumps)	10	Appelez-nous	-
021	NLA		Plug (13)	10	Appelez-nous	-
022	NLA		Sleeve, Reducing	10	Appelez-nous	-
023	23002791		Nut (m14x1.5)	10	Appelez-nous	-
024	23002792		Washer (14)	10	Appelez-nous	-
025	NLA		Screw (m6x10)	10	Appelez-nous	-
026	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
027	23002795		Plug	10	Appelez-nous	-
