SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Airflow, Lit/optional

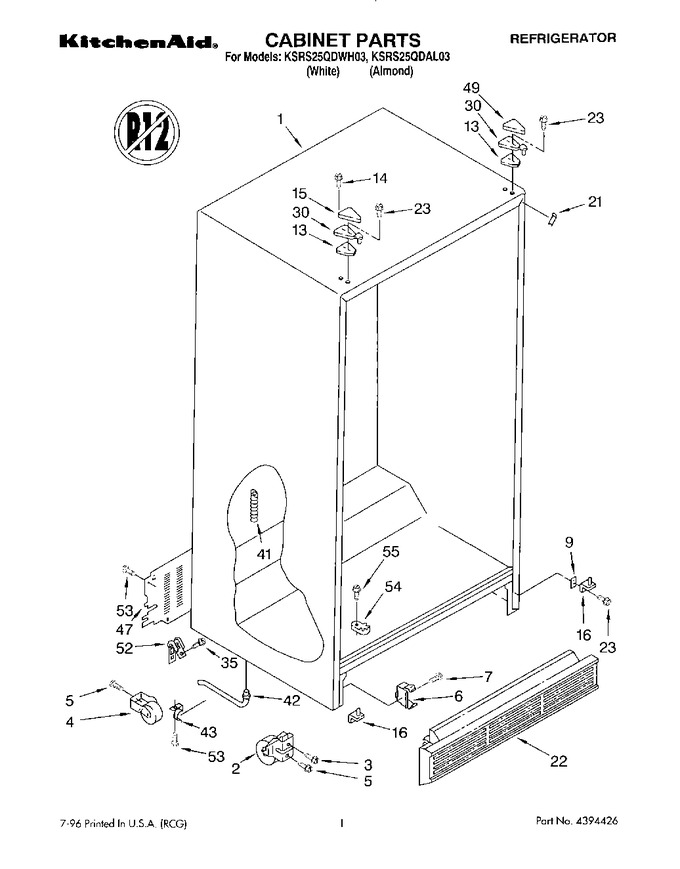

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 10.69
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489478		Screw   (Replaces: 489478)				$ 6.98
9	WP2181911		Shim   (Replaces: 2156056)				$ 29.89
13	2171868		Shim, Hinge Top		Appelez-nous	-
14	489284		Screw		Appelez-nous	-
15	1129262		Hinge Cover (white)				$ 15.75
15	2150343		Hinge Cover (almond)		Appelez-nous	-
16	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 80.01
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
22	2155487		Grille (almond)		Appelez-nous	-
22	2155486		Grille (white)		Appelez-nous	-
23	WP999367		Screw   (Replaces: 489367)				$ 7.07
30	2171865		Hinge Top (2)		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 45.81
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 28.20
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 9.67
47	WP2188755		Cover, Unit   (Replaces: 2176140)				$ 122.32
49	1119789		Hinge Cover (almond)		Appelez-nous	-
49	1119787		Hinge Cover (white)				$ 22.50
52	549193		Clamp-service Cord				$ 12.05
53	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 4.89
55	WP489483		Screw   (Replaces: 489483)				$ 9.78
