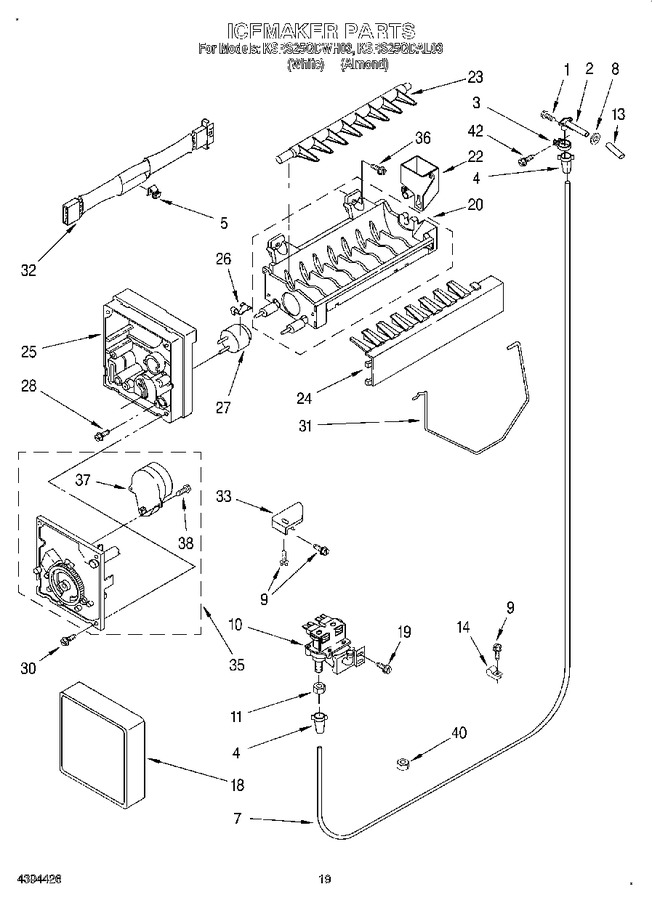

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 2 | WP2196157 | Fitting, Water Tube (Replaces: 2182015) |
|
Immediately | $ 10.79 | ||||
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 10.44 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 2181940) |
|
Immediately | $ 29.17 | ||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 8.94 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 10 | W10853654 | Valve, Solenoid (Replaces: 2181730) |
|
$ 141.91 | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 9.87 | |||||
| 13 | 2171943 | Tube, Water Inlet |
|
$ 70.00 | |||||
| 14 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 10.06 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 7.56 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces: 628228) |
|
$ 209.84 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 10.96 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 46.07 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 627788) |
|
$ 77.45 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 94.11 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 9.95 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
Immediately | $ 98.26 | ||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 12.03 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 54.18 | ||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 628256) |
|
$ 112.11 | |||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 28.95 | ||||
| 35 | W10190935 | Module Assembly (includes Items 37 & 38) (Replaces: 628399) |
|
Immediately | $ 99.06 | ||||
| 36 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 37 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 99.06 | ||||
| 38 | 489136 | Screw |
|
$ 9.26 | |||||
| 40 | 1129179 | Nut, Compression |
|
- | |||||
| 42 | WP488787 | Screw (Replaces: 488886) |
|
$ 9.52 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 170.06 |
