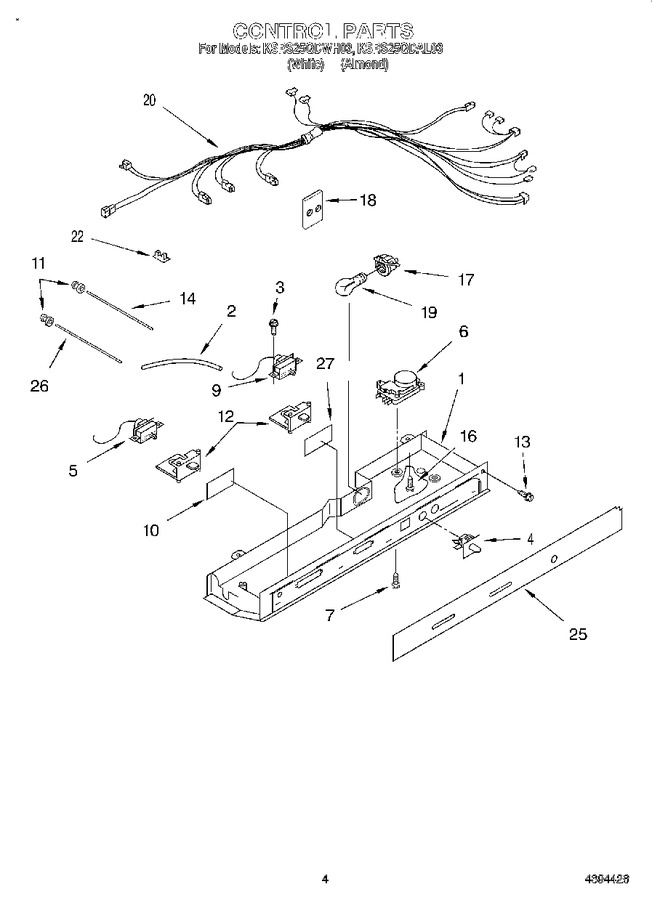

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2161459)		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2172948)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 36.36
5	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 203.67
6	W10822278		Defrost Timer (10 Hr.)   (Replaces: 2162046)			Immediately	$ 31.00
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 223.80
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	2172931		Heat Shield				$ 63.34
19	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
20	2182130		Control Box Harness		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
25	2161486		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
