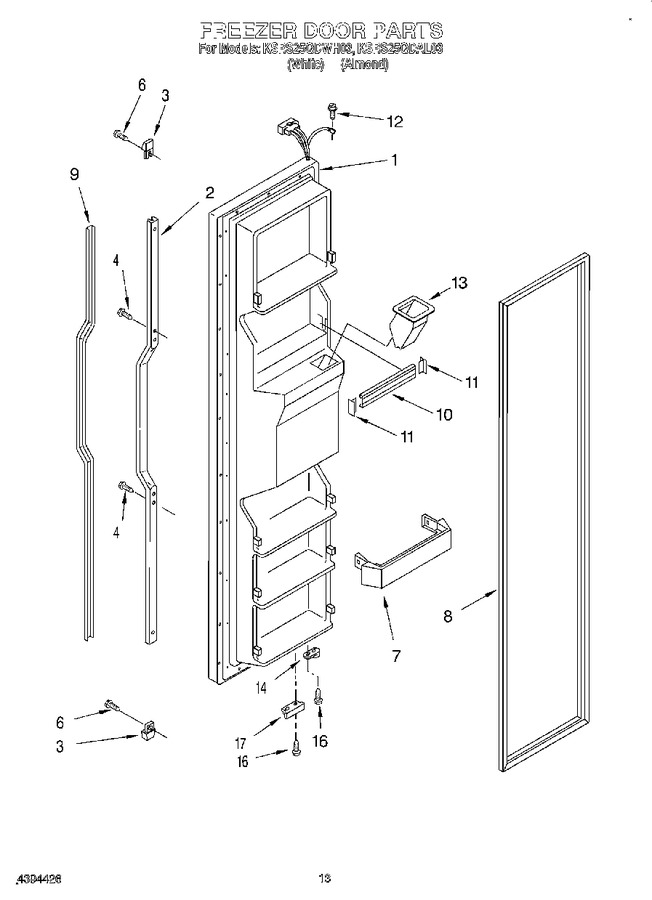

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194004		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2194005		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2192774		Retainer, Insert		Appelez-nous	-
3	2173826		End Cap (2)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
6	489075		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)				$ 279.17
9	2173825		Insert, Handle (white)		Appelez-nous	-
9	2173828		Insert, Handle (almond)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 20.80
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 10.96
12	WP488234		Screw   (Replaces: 489422)				$ 6.07
13	2156146		Chute, Ice		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 24.62
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2155332		Bracket, Door Stop		Appelez-nous	-
