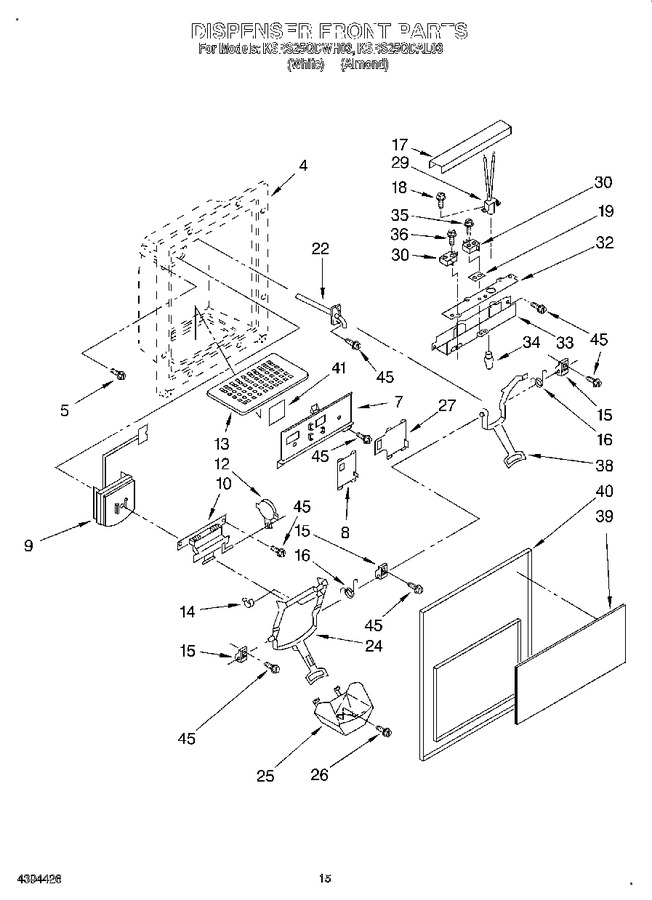

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | N/A | Housing, Dispenser (not A Serviceable Part) |
|
- | |||||
| 5 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 12.65 | ||||
| 7 | 2152717 | Frame, Slides (white) |
|
- | |||||
| 7 | 2152718 | Frame, Slides (almond) |
|
- | |||||
| 8 | 2152720 | Slide, Cube/crush Switch (white) |
|
- | |||||
| 8 | 2152721 | Slide, Cube/crush Switch (almond) |
|
- | |||||
| 9 | WP2180353 | Door, Ice (Replaces: 2157651) |
|
Immediately | $ 22.22 | ||||
| 10 | 2157650 | Door Mechanism Assembly |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 191.76 | |||||
| 13 | 1126121 | Grille, Overflow (almond) |
|
- | |||||
| 13 | 1126120 | Grille, Overflow (white) |
|
- | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 2147165 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 19 | 625834 | Spacer |
|
$ 7.99 | |||||
| 22 | WP4388152 | Water Fitting Assembly (includes Water Tube) (Replaces: 2157744) |
|
$ 248.79 | |||||
| 24 | 2177146 | Lever Assembly, Ice Dispenser (white) |
|
- | |||||
| 24 | 2177147 | Lever Assembly, Ice Dispenser (almond) |
|
- | |||||
| 25 | 1124730 | Guide, Ice (white) |
|
$ 19.06 | |||||
| 25 | 1126026 | Guide, Ice (almond) |
|
- | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 2152726 | Slide, Light Switch (white) |
|
- | |||||
| 27 | 2152727 | Slide, Light Switch (almond) |
|
- | |||||
| 29 | 2147131 | Lamp Holder |
|
- | |||||
| 30 | WP2162361 | Switch (4) (Replaces: 2162361) |
|
Immediately | $ 24.61 | ||||
| 32 | 2147164 | Insulator, Control Bracket |
|
- | |||||
| 33 | 2147163 | Bracket, Control |
|
- | |||||
| 34 | WP22002263 | Bulb, Light (Replaces: 851389) |
|
Immediately | $ 12.29 | ||||
| 35 | 488361 | Screw (2) |
|
- | |||||
| 36 | 489155 | Screw (6) |
|
- | |||||
| 38 | 2177152 | Lever Assembly, Water Dispenser (almond) |
|
- | |||||
| 38 | 2177151 | Lever Assembly, Water Dispenser (white) |
|
- | |||||
| 39 | 2174339 | Insert, Cover (almond) |
|
- | |||||
| 39 | 2174341 | Insert, Cover (white) |
|
- | |||||
| 40 | 2179389 | Cover, Housing (includes Item 39) (white) |
|
- | |||||
| 40 | 2179387 | Cover, Housing (includes Item 39) (almond) |
|
- | |||||
| 41 | 2147172 | Heat Shield, Frame |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.06 |
