SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front

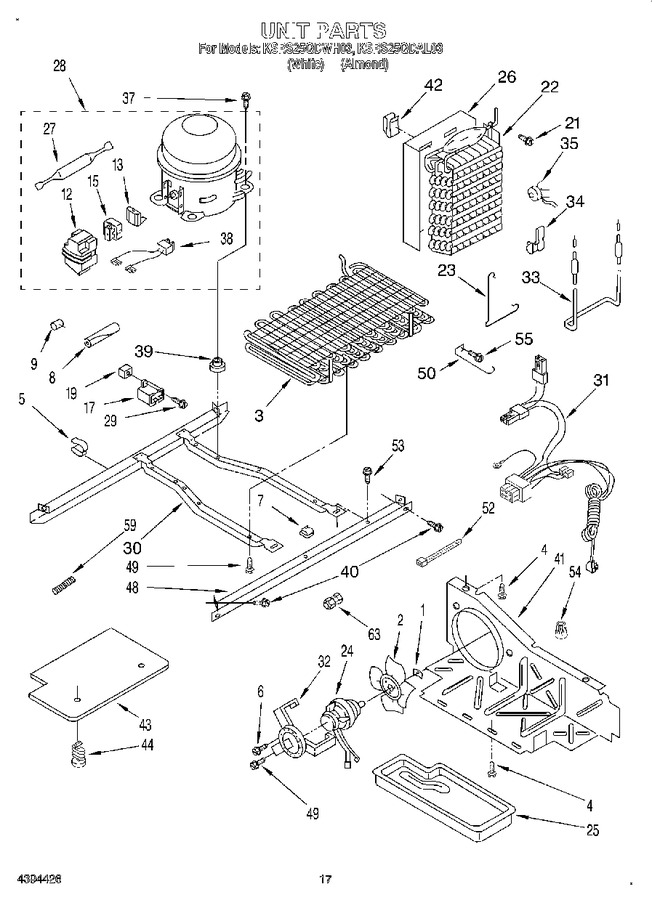

10 - Unit


11 - Icemaker


12 - Airflow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	1108179		Fan, Blade				$ 49.54
3	2164504		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 11.75
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 18.27
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.56
12	WP2162358		Cover   (Replaces: 2162358)				$ 81.68
13	WP2154697		Overload (includes Relay) Production   (Replaces: 2154697)				$ 117.66
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2169137		Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	2164519		Evaporator		Appelez-nous	-
23	2161324		Clamp		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 79.34
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 47.31
28	876765		Tube Kit			Immediately	$ 77.70
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183419)			Immediately	$ 551.61
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	2181709		Unit, Harness		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	WP2323198		Heater, Defrost   (Replaces: 2176065)			Immediately	$ 81.63
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2176066)			Immediately	$ 45.69
37	876811		Screw   (Replaces: 489373)				$ 6.68
38	WP2172890		Wire Connector   (Replaces: 2172890)				$ 7.29
39	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 86.74
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2182058		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 9.65
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 72.58
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	WP489427		Screw   (Replaces: 489427)				$ 6.72
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 82.22
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 117.64
63	WP4211117		Union   (Replaces: 2150347)				$ 8.96
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
63	978026		Valve, Access (5/16``)			Immediately	$ 115.28
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
