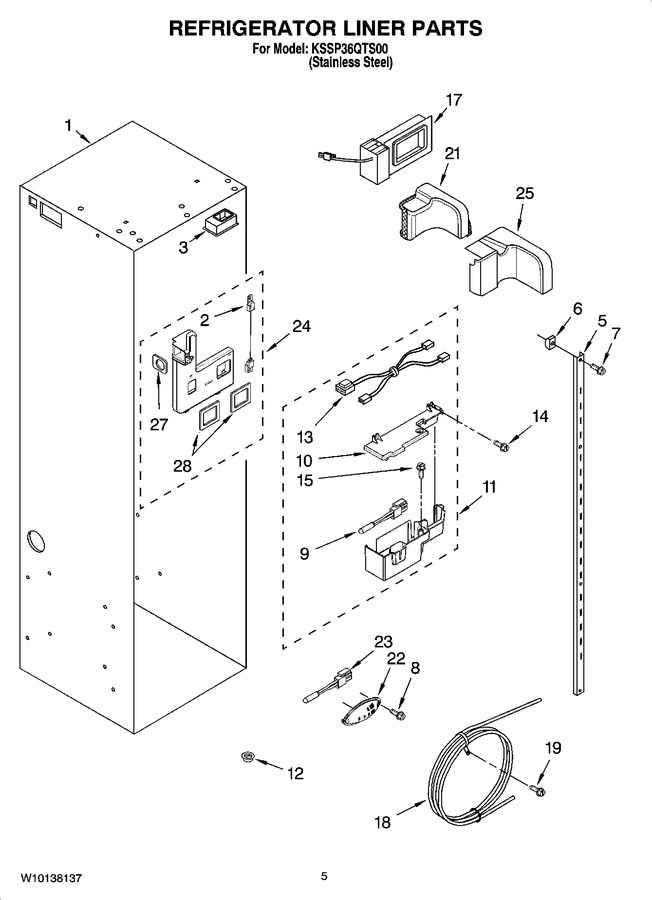

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2306010		Thermistor   (Replaces: 2306010)			Immediately	$ 88.79
3	2208970		Air Duct				$ 129.77
5	WP2259077		Ladder, Shelf (2)   (Replaces: 2259077)				$ 70.77
6	520965		Screw Support, Ladder (8)				$ 26.87
7	2006475		Screw,		Appelez-nous	-
8	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.01
9	WP2302937		Thermistor   (Replaces: 2302937)				$ 75.78
10	2302986		Lid, Meat Pan Baffle		Appelez-nous	-
11	WPW10169528		Baffle, Control Assembly   (Replaces: 2320635)				$ 289.35
12	2171846		Release Valve				$ 18.99
13	2310205		Jumper, Air Baffle		Appelez-nous	-
14	488357		Screw		Appelez-nous	-
15	W11624204		Screw   (Replaces: 486194)				$ 12.62
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 353.64
18	W10645131		Reservoir   (Replaces: 2327509)				$ 247.14
19	488280		Screw		Appelez-nous	-
21	WP2309222		Diffuser Assembly   (Replaces: 2309222)				$ 87.49
22	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 9.76
23	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
24	W10475010		Spacer, Air Baffle   (Replaces: 2302992)				$ 277.42
25	2309087		Cover, Diffuser		Appelez-nous	-
27	2259412		Seal, Air Duct (round Hole)		Appelez-nous	-
28	2259398		Seal, Air Duct (square Hole)		Appelez-nous	-
