01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

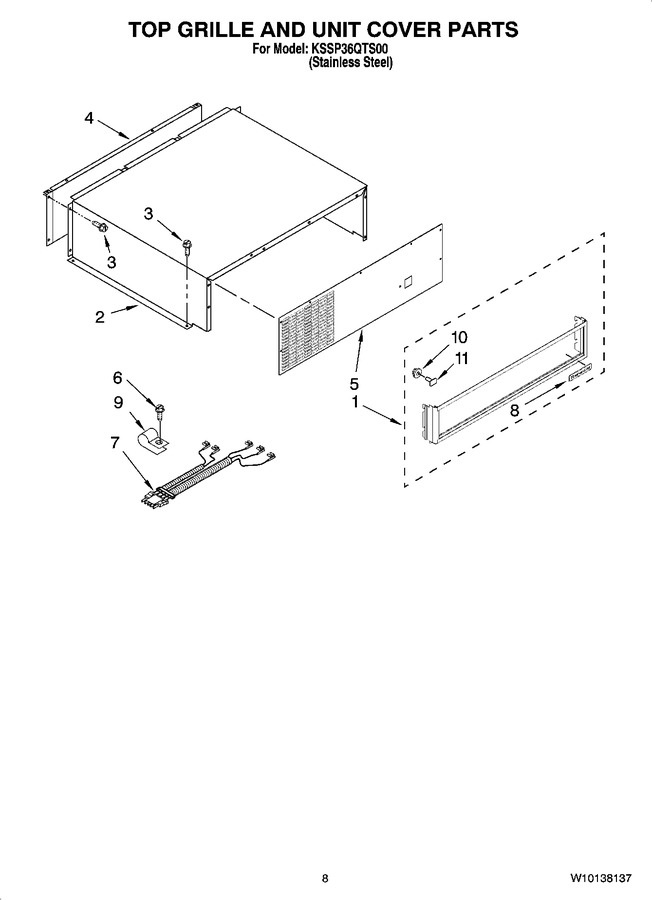

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2317022S		Panel, Decorative Assembly (stainless Steel)		Appelez-nous	-
2	2320502		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 12.62
4	2256466		Back Panel				$ 280.48
5	W10121229		Cover, Unit Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 9.65
7	2310194		Wire Assembly, Rc/fc Light Switch				$ 69.47
8	2317923S		Badge, Kitchen Aid		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	WP2004333		Nut   (Replaces: 2004333)				$ 9.63
11	2003347		Tee Bolt				$ 12.85

    View Diagram in Separate Window       Print Part List
