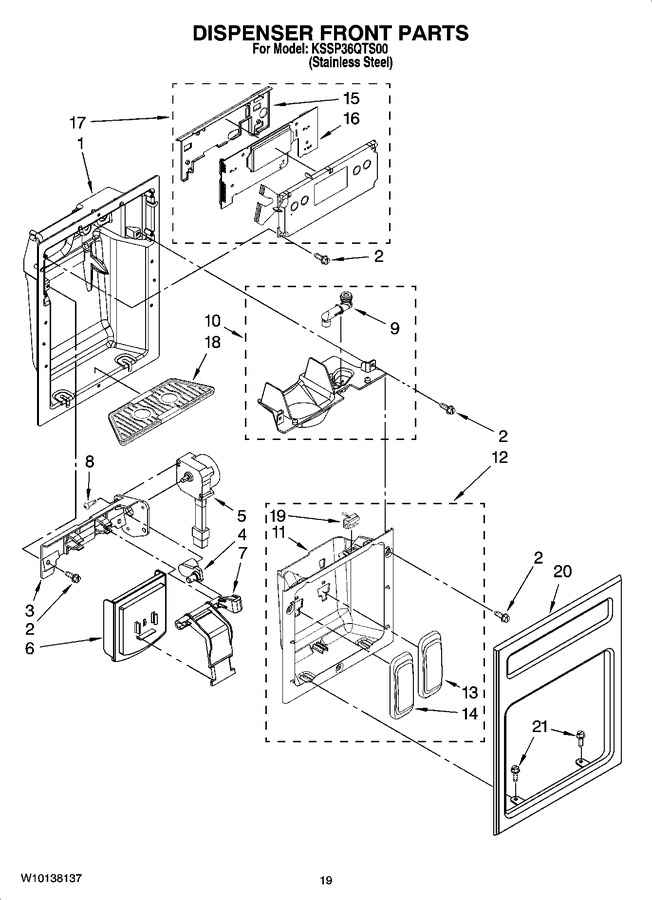

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11624204 | Screw (3) (Replaces: 486194) |
|
$ 12.62 | |||||
| 3 | WPW10546285 | Bracket, Motor (Replaces: W10132946) |
|
Immediately | $ 94.47 | ||||
| 4 | WP2305242 | Connector, Door Bracket (Replaces: 2305242) |
|
Immediately | $ 87.27 | ||||
| 5 | WPW10205979 | Motor, Ice Door (Replaces: 2318021) |
|
Immediately | $ 92.23 | ||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 22.22 | ||||
| 7 | WPW10546285 | Support, Ice Door (Replaces: 2318020) |
|
Immediately | $ 94.47 | ||||
| 8 | WP4449745 | Screw (2) (Replaces: 4449745) |
|
$ 6.74 | |||||
| 9 | WP2305235 | Spigot (Replaces: 2305235) |
|
$ 126.06 | |||||
| 10 | 2318017 | Separator Assembly |
|
Immediately | $ 107.42 | ||||
| 12 | WPW10260622 | Housing Assembly (Replaces: 2307675US) |
|
Immediately | $ 421.00 | ||||
| 13 | W10133603 | Water, Paddle Asy (Replaces: 2305307GN) |
|
Immediately | $ 290.75 | ||||
| 14 | W10133603 | Ice, Paddle Asy (Replaces: 2305306GN) |
|
Immediately | $ 290.75 | ||||
| 15 | 2305219 | Cover, Control |
|
$ 79.70 | |||||
| 16 | WP2321746 | Electronic Control (includes 15) (Replaces: 2304140) |
|
Immediately | $ 273.29 | ||||
| 17 | WPW10151236 | User Interface Asy (Replaces: 2318073) |
|
Immediately | $ 444.45 | ||||
| 18 | W11177738 | Tray, Housing (Replaces: 2318062US) |
|
Immediately | $ 66.25 | ||||
| 19 | W10222215 | Led Assembly (Replaces: 2305342) |
|
$ 132.46 | |||||
| 20 | 2307320US | Universal Silver |
|
$ 107.32 | |||||
| 21 | W10759522 | Screw (Replaces: 488568) |
|
$ 6.98 |
