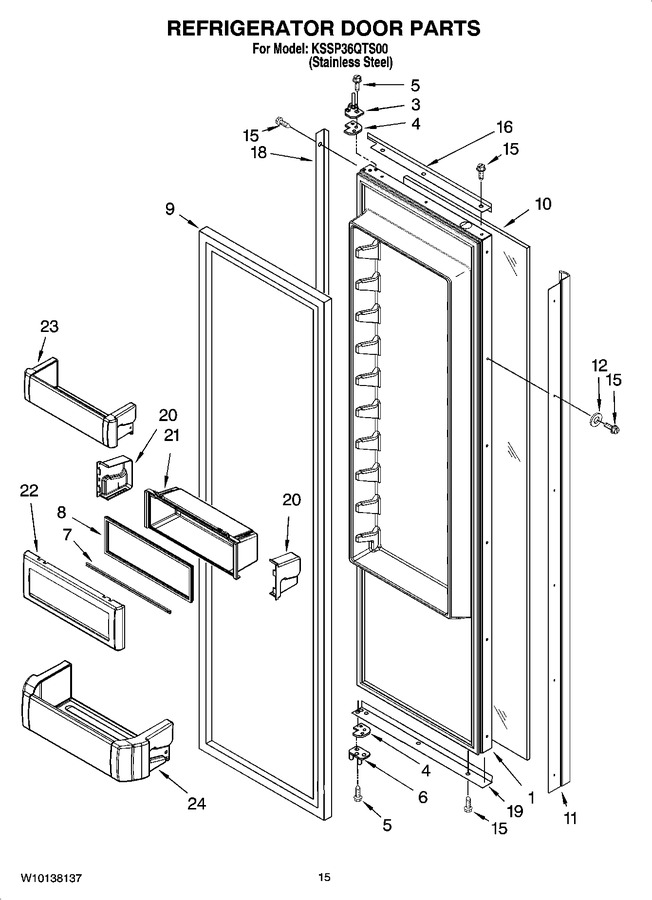

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252329		Refrigerator Door (includes 9)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 267.86
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 97.26
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.22
6	2302878		Hinge Assembly, Bottom			Immediately	$ 78.01
7	2222795		Rail, Lid				$ 72.09
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 183.77
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 317.01
10	2209349		Panel, Decorative Insert (stainless Steel)		Appelez-nous	-
11	2316842S		Handle, Door (stainless Steel)				$ 224.10
12	2001230		Washer				$ 12.34
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 9.79
16	2005016		Trim-door, Top		Appelez-nous	-
18	2005969		Trim-door, Side (hinge Side)		Appelez-nous	-
19	2215993S		Trim-door, Btm		Appelez-nous	-
20	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.37
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.37
21	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 72.80
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 64.98
23	W10323598		Bin, Door (3)   (Replaces: 2222772)				$ 89.82
24	W10323746		Bin, Door   (Replaces: 2222769)				$ 92.78
