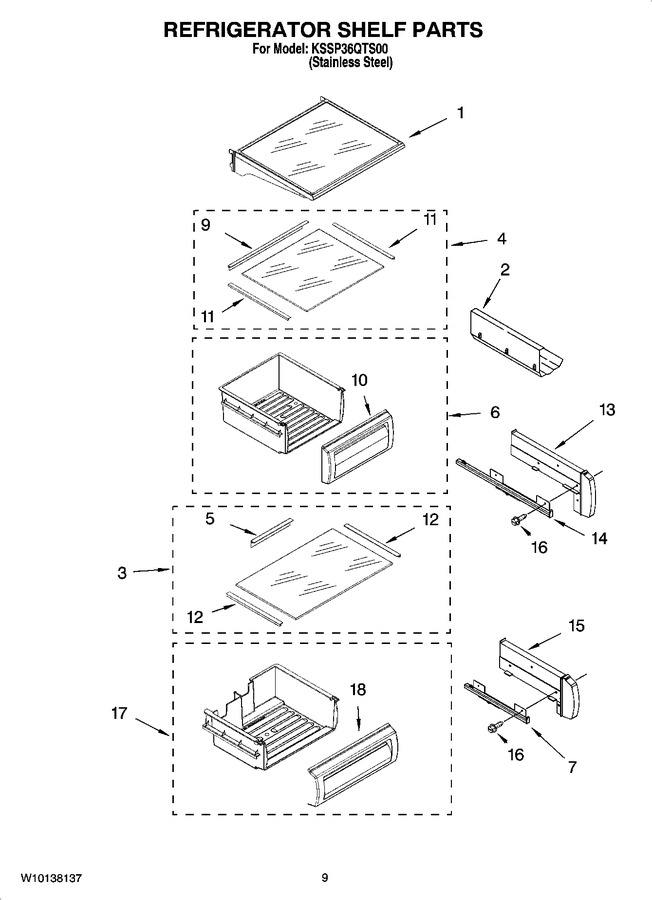

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assy (4)		Appelez-nous	-
2	W10777924		Rack, Wine   (Replaces: 2179404)				$ 21.24
3	2302841		Assembly, Meat Pan Cover		Appelez-nous	-
4	2302834		Assembly, Crisper Cover		Appelez-nous	-
5	2257581		Trim, Glass Rear		Appelez-nous	-
6	W10407623		Crisper Pan (2)   (Replaces: 2252411)		Appelez-nous	-
7	2302955		Slide, Meat Pan (right Side)				$ 294.16
7	2302954		Slide, Meat Pan (left Side)				$ 294.42
9	2256253		Trim, Glass Rear		Appelez-nous	-
10	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 114.19
11	2252255		Trim, Glass (side) (crisper Pan)		Appelez-nous	-
12	2256250		Trim, Glass (side) (meat Pan)		Appelez-nous	-
13	2256223		Spacer, Crisper (left Side) (2)				$ 72.42
13	2256222		Spacer, Crisper (right Side) (2)				$ 76.49
14	2302957		Slide, Crisper (left Side)				$ 195.71
14	2302956		Slide, Crisper (right Side)				$ 256.05
15	2256243		Spacer, Meat Pan (left Side)				$ 71.18
15	2256244		Spacer, Meat Pan (right Side)				$ 88.88
16	WP8533928		Screw (left Side- (8-18 X .750))   (Replaces: 8533928)			Immediately	$ 7.04
16	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
17	W10407626		Pan Assembly Meat   (Replaces: 2256368)		Appelez-nous	-
18	WP2256365		Front, Meat Pan   (Replaces: 2256365)				$ 148.73
