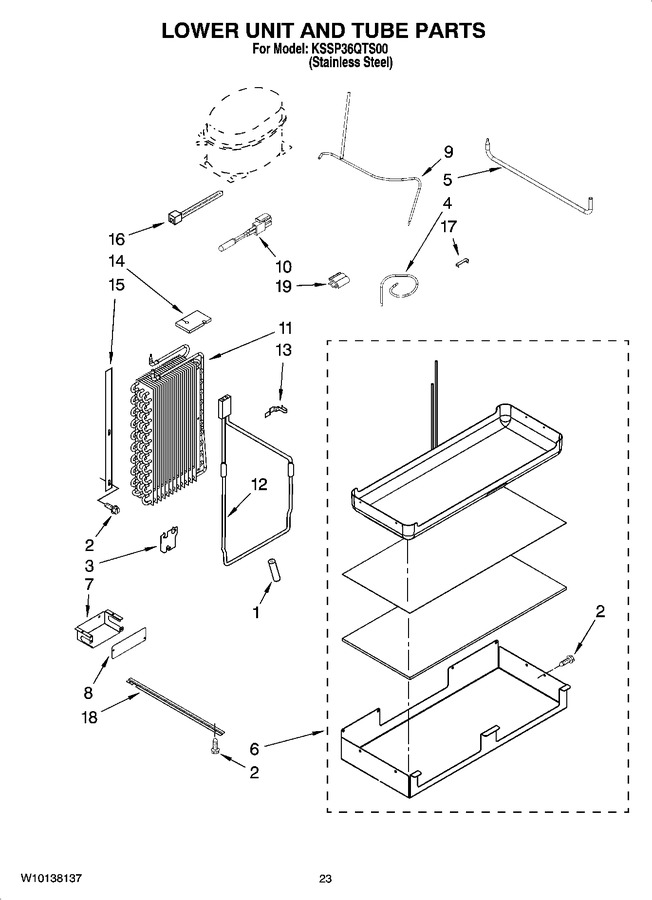

14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215648		Damper, Heater				$ 11.32
2	W11624204		Screw   (Replaces: 486194)				$ 12.62
3	2215508		Bracket		Appelez-nous	-
4	2309076		Suction Tube				$ 136.59
5	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 34.70
6	W11623101		Drain Pan Assy.   (Replaces: 2320615)			Immediately	$ 337.73
7	2316683		Cover, Wiring		Appelez-nous	-
8	2316684		Cover, Box		Appelez-nous	-
9	W10121370		Tube, Discharge		Appelez-nous	-
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
11	WP2306092		Evaporator   (Replaces: 2306092)			Immediately	$ 312.85
12	2306387		Heater, Defrost		Appelez-nous	-
13	1113048		Clamp, Heater (2)		Appelez-nous	-
14	2316794		Seal, Return Air		Appelez-nous	-
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.11
17	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	9791833		Clip		Appelez-nous	-
