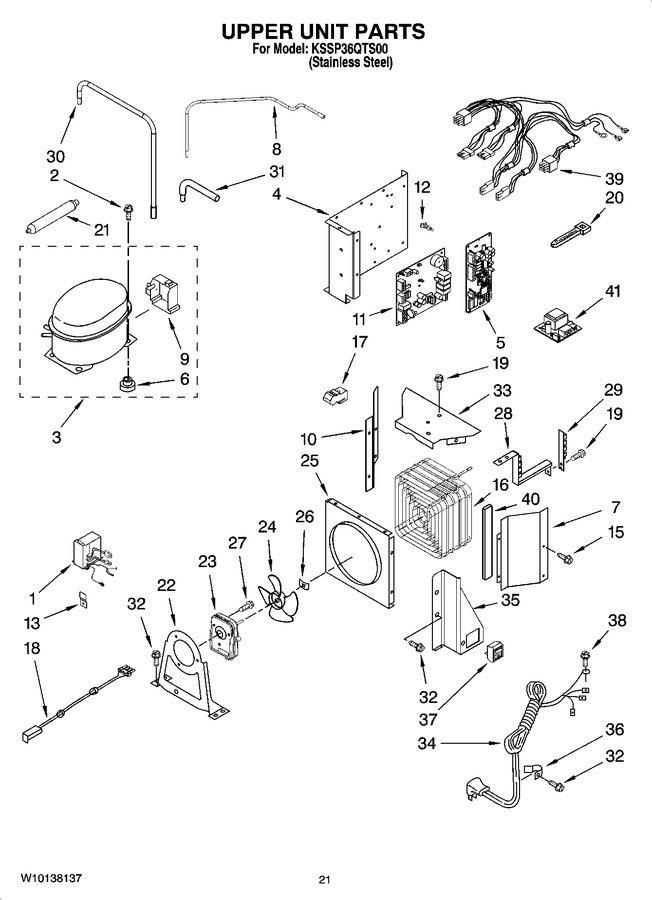

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: W10133449) |
|
Immediately | $ 380.10 | ||||
| 2 | 876811 | Screw, Compressor Mounting (4) (Replaces: 489373) |
|
$ 6.68 | |||||
| 3 | W10841139 | Compressor (includes Items 6 & 9) (also Order 876765 Tube Kit) (Replaces: 2302967) |
|
Immediately | $ 433.30 | ||||
| 4 | 2318087 | Housing, Control Board |
|
$ 72.43 | |||||
| 5 | WP2318054 | Control Board (Replaces: 2318054) |
|
Immediately | $ 282.72 | ||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 6.68 | |||||
| 7 | 2309002 | Support, Condenser |
|
- | |||||
| 8 | 2307692 | Tube, Tranisiton (cond/ht Loop) (right) |
|
- | |||||
| 9 | 2215676 | Terminal Cover |
|
$ 80.88 | |||||
| 10 | 2309001 | Support, Condenser (left) |
|
- | |||||
| 11 | W10219462 | Control Board (Replaces: W10121049) |
|
$ 293.81 | |||||
| 12 | WP2203075 | Spacer (5) (Replaces: 2203075) |
|
Immediately | $ 16.12 | ||||
| 13 | 2256328 | Bracket, Inverter Box |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 16 | 2307998 | Condenser |
|
$ 437.18 | |||||
| 17 | 2309431 | Grommet (2) |
|
$ 12.20 | |||||
| 18 | 2310207 | Wire, Jumper |
|
- | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.26 | |||||
| 20 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 7.11 | |||||
| 21 | WPW10143759 | Drier (Replaces: 2317982) |
|
Immediately | $ 27.70 | ||||
| 22 | 2215641 | Bracket, Fan Motor (condenser Fan) |
|
- | |||||
| 23 | W10181323 | Motor, Fan (Replaces: 2206036) |
|
Immediately | $ 272.96 | ||||
| 24 | 2190685 | Blade, Fan |
|
$ 52.00 | |||||
| 25 | 2003169 | Orifice, Fan |
|
- | |||||
| 26 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.04 | |||||
| 27 | 8281160 | Screw |
|
- | |||||
| 28 | 2317031 | Bracket, Vibration (condenser) |
|
- | |||||
| 29 | 2317030 | Arm, Vibration (condenser) |
|
- | |||||
| 30 | 2307566 | Tube, Transition (condenser/drier) |
|
$ 15.29 | |||||
| 31 | W10528578 | Tube, Process (Replaces: 2194319) |
|
$ 34.13 | |||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 33 | 2309000 | Cover, Condenser |
|
- | |||||
| 34 | WP2310251 | Service Cord (Replaces: 2310251) |
|
$ 76.23 | |||||
| 35 | 2307684 | Bracket, Mounting (power Switch) |
|
- | |||||
| 36 | 549193 | Clamp-cord |
|
$ 12.05 | |||||
| 37 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 93.50 | |||||
| 38 | 00487294 | Screw, Ground (Replaces: 487294) |
|
$ 157.58 | |||||
| 39 | W10178860 | Wiring Harness, Unit Compartment (Replaces: W10129829) |
|
$ 281.92 | |||||
| 40 | 2309432 | Gasket, Condenser |
|
- | |||||
| 41 | WP2259350 | Power Supply, Ingredient Care Center (Replaces: 2259350) |
|
$ 124.59 | |||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 117.64 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 |
