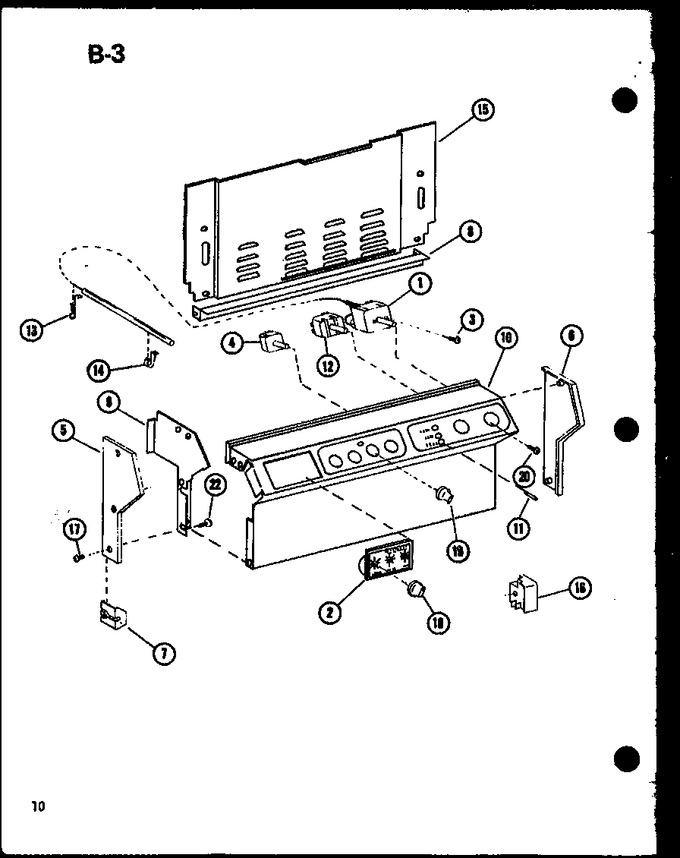

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C2721501 | Oven Thermostat Kit |
|
- | |||||
| 2 | C2721601 | Timer |
|
- | |||||
| 3 | M0202528 | Screw |
|
- | |||||
| 4 | C2702703 | Switch, Infinite |
|
- | |||||
| 5 | D8515201 | End Cap |
|
- | |||||
| 6 | D8515202 | End Cap |
|
- | |||||
| 7 | B5011301 | Brkt-end Cap |
|
- | |||||
| 8 | B5018401 | Supt-backsplash |
|
- | |||||
| 9 | C2714501 | Supt-end Cap Rh |
|
- | |||||
| 9 | C2714502 | Supt-end Cap Lh |
|
- | |||||
| 10 | D8529003 | Control Pnl |
|
- | |||||
| 11 | M0360204 | Light-indicator/ W Clip |
|
- | |||||
| 12 | C2721701 | Switch |
|
- | |||||
| 15 | D8509603 | Cover-upper Lead |
|
- | |||||
| 17 | M0234229 | Screw |
|
- | |||||
| 18 | B5005101 | Knob, Dual Timer |
|
- | |||||
| 19 | B5012905 | Knob-control |
|
- | |||||
| 19 | B5012903 | Knob, Control |
|
- | |||||
| 19 | B5012904 | Knob-control |
|
- | |||||
| 20 | M0202515 | Screw A |
|
- | |||||
| 22 | M0234041 | Screw |
|
- |
