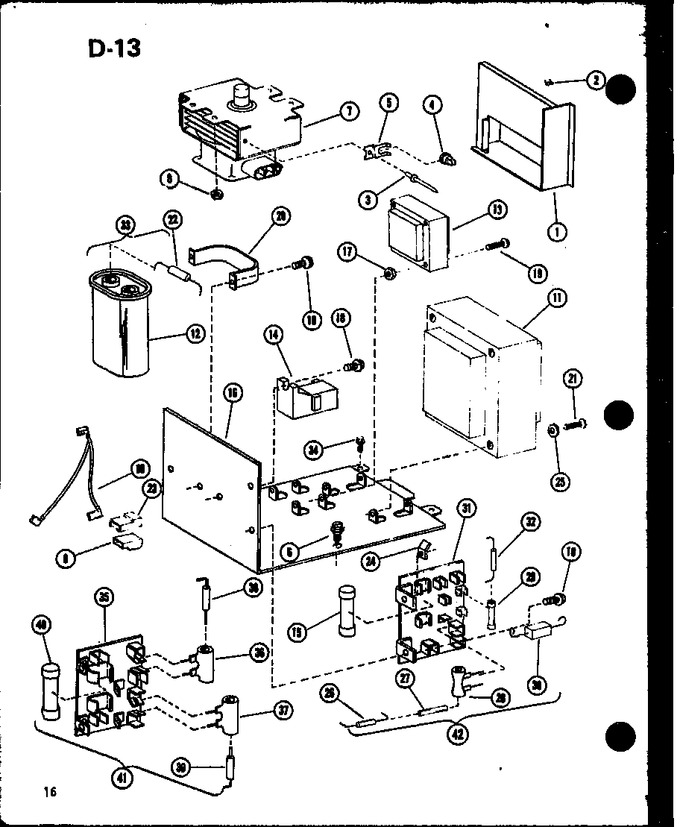

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8802401 | Air Duct Wld |
|
- | |||||
| 2 | M0113501 | Clip |
|
- | |||||
| 3 | A4539601 | Pop Rivet |
|
- | |||||
| 4 | B5665810 | Thermal Cut Out |
|
- | |||||
| 5 | B5725102 | Clip |
|
- | |||||
| 6 | YM0258229 | Sems Fastener |
|
- | |||||
| 7 | C8761704 | Magnetron |
|
- | |||||
| 8 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 9 | M0325501 | Insulator, Pod K |
|
- | |||||
| 10 | D7292653 | Jumper Wire |
|
- | |||||
| 10 | D7292651 | Jumper Wire |
|
- | |||||
| 10 | D7292654 | Jumper Wire |
|
- | |||||
| 10 | D7292655 | Jumper Wire |
|
- | |||||
| 10 | D7292652 | Jumper Wire |
|
- | |||||
| 11 | D7369202 | Transformer |
|
- | |||||
| 12 | C8790501 | Capacitor Assy |
|
- | |||||
| 13 | C8788005 | Transformer Filament |
|
- | |||||
| 14 | B5767802 | Kit, Diode |
|
- | |||||
| 15 | M0850507 | Fuse-20a |
|
- | |||||
| 16 | D7419701 | Mtg Plate |
|
- | |||||
| 17 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 18 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 19 | M0254409 | Screw |
|
- | |||||
| 20 | A3184702 | Bracket |
|
- | |||||
| 21 | M0254452 | Screw |
|
- | |||||
| 22 | M0305202 | Resistor A |
|
- | |||||
| 23 | M0325301 | Insulator, Term. K |
|
- | |||||
| 24 | M0320901 | Terminal |
|
- | |||||
| 25 | M0272805 | Lock Washer |
|
- | |||||
| 26 | M0308102 | Fuse |
|
- | |||||
| 27 | M0321701 | Sleeve |
|
- | |||||
| 28 | M0305009 | Resistor A |
|
- | |||||
| 29 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 30 | M0305204 | Resistor |
|
- | |||||
| 31 | C8758401 | Terminal Board |
|
- | |||||
| 32 | M0308101 | Fuse |
|
$ 9.87 | |||||
| 33 | R0160021 | Capacitor Assy |
|
- | |||||
| 34 | M0253916 | Screw |
|
- | |||||
| 35 | C8841601 | Terminal Board |
|
- | |||||
| 36 | M0305009 | Resistor A |
|
- | |||||
| 37 | M0305013 | Resistor |
|
- | |||||
| 38 | M0308102 | Fuse |
|
- | |||||
| 39 | M0308109 | Fuse Resistor K (Replaces: M0308107) |
|
- | |||||
| 40 | M0850507 | Fuse-20a |
|
- | |||||
| 41 | Y00000000 | See Note See Note Late Production Assembly, Refer To Product |
|
- | |||||
| 42 | Y00000000 | See Note See Note Early Production Assembly, Refer To Product |
|
- |
