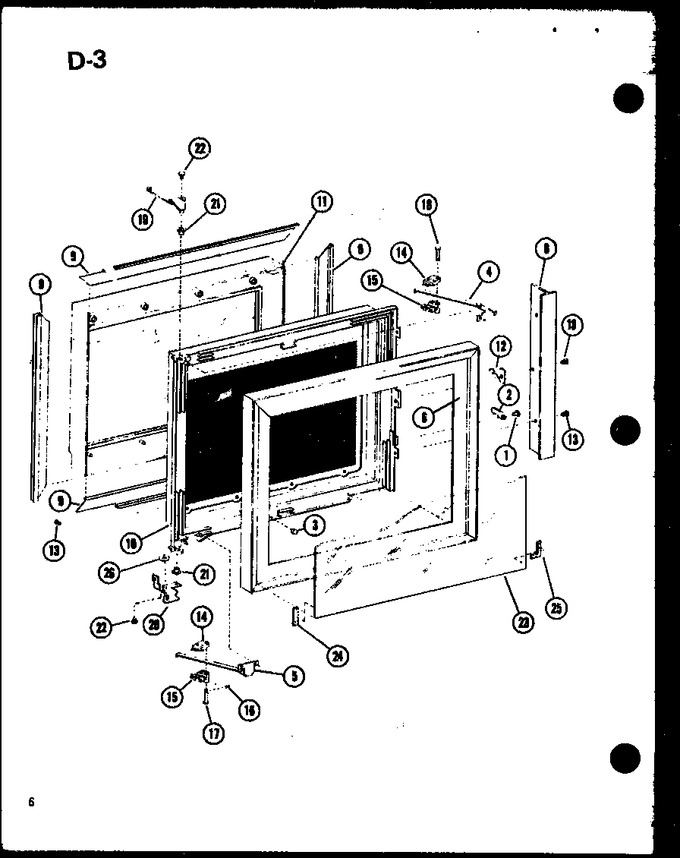

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3183902 | Pin, Countersunk, Latch |
|
- | |||||
| 2 | A3183001 | Latch, Door |
|
- | |||||
| 3 | M0285401 | Push Nut |
|
- | |||||
| 4 | B5724404 | Door Stop |
|
- | |||||
| 5 | B5724401 | Door Stop Assy |
|
- | |||||
| 6 | D7388201 | Extrusion-door |
|
- | |||||
| 8 | C8713403 | Handle |
|
- | |||||
| 9 | M0275140 | Tape Per Roll |
|
- | |||||
| 9 | D7211601 | Gasket, Door Top, Bottom & Sid |
|
- | |||||
| 10 | D7213701 | Inner Door Wldmt |
|
- | |||||
| 11 | D7250301 | Inner Door Mold Assy |
|
- | |||||
| 12 | B5710801 | Door Latch |
|
- | |||||
| 13 | M0253217 | Screw |
|
- | |||||
| 14 | C3696902 | Bushing |
|
- | |||||
| 15 | C3696903 | Bushing |
|
- | |||||
| 16 | A3171501 | Clip,hairpin |
|
- | |||||
| 17 | A3222601 | Pin-door Stop |
|
- | |||||
| 18 | A3211102 | Pin-door Stop |
|
- | |||||
| 19 | C8763702 | Hinge-bottom |
|
- | |||||
| 20 | C8803501 | Hinge, Bottom |
|
- | |||||
| 21 | B5721701 | Bushing-hinge |
|
- | |||||
| 22 | M0258001 | Screw |
|
- | |||||
| 23 | C8756101 | Glass-door |
|
- | |||||
| 24 | A3030335 | Gasket-per Ft |
|
- | |||||
| 25 | A3030336 | Gasket-per Ea |
|
- | |||||
| 26 | M0274032 | Washer Non-metal |
|
- |
