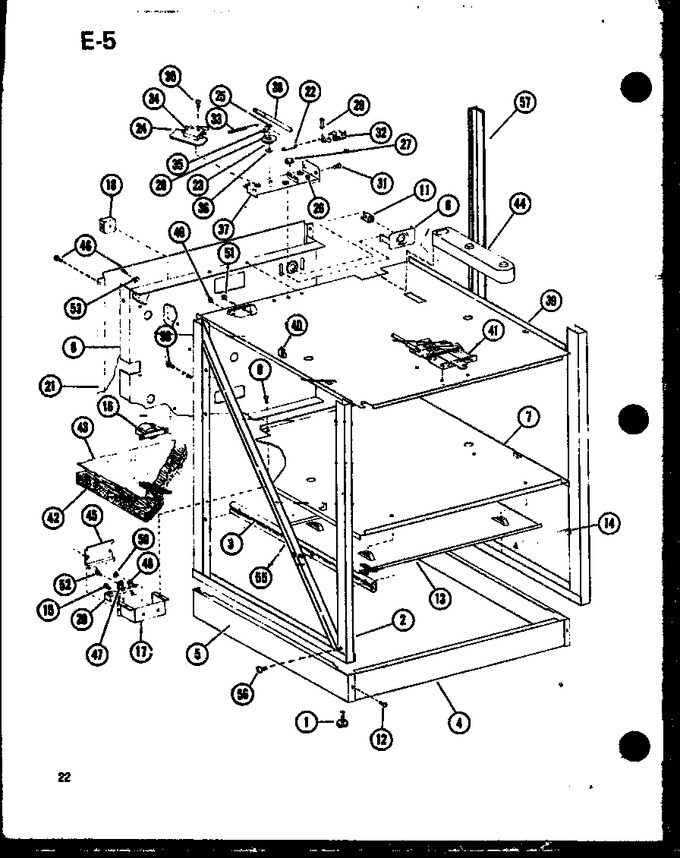

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A4400801 | Foot |
|
- | |||||
| 1 | A4400802 | Foot, Level, Rear |
|
- | |||||
| 2 | D8504103 | Side Frame Weld |
|
- | |||||
| 3 | C2705301 | Glide |
|
- | |||||
| 4 | C2706701 | Panel, Kick Front |
|
- | |||||
| 5 | C2706601 | Panel, Kick Side |
|
- | |||||
| 6 | B5000601 | Reflector |
|
- | |||||
| 7 | D8510401 | Retainer |
|
- | |||||
| 8 | D8506301 | Retainer |
|
- | |||||
| 9 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.04 | ||||
| 11 | A4400701 | Socket, Oven Light |
|
- | |||||
| 12 | M0214217 | Screw |
|
- | |||||
| 13 | C2706801 | Heat Shield |
|
- | |||||
| 14 | B5006101 | Extrusion, Heat Shield |
|
- | |||||
| 15 | M0211646 | Screw |
|
- | |||||
| 16 | B5005901 | Ballast |
|
- | |||||
| 17 | C2705001 | Brkt-term Block |
|
- | |||||
| 18 | C2717101 | Relay, Oven |
|
- | |||||
| 20 | WP8203546 | Terminal Block (Replaces: B5003401) |
|
Immediately | $ 27.12 | ||||
| 21 | D8509501 | Lwr Lead Cover Kit |
|
- | |||||
| 22 | A4405801 | Arm-actuator |
|
- | |||||
| 23 | B5004201 | Cam, Lock Solenoid |
|
- | |||||
| 24 | A4405601 | Insulator-switch |
|
- | |||||
| 25 | M0287901 | Speed Nut A- K |
|
- | |||||
| 26 | M0119701 | Clip |
|
- | |||||
| 27 | A4405901 | Pad |
|
- | |||||
| 28 | A4405701 | Pin-grooved |
|
- | |||||
| 29 | M0010212 | Pop Rivet |
|
- | |||||
| 30 | M0227520 | Screw |
|
- | |||||
| 31 | WP74004005 | Screw (Replaces: M0201416) |
|
$ 6.95 | |||||
| 32 | C2711701 | Solenoid, Lock |
|
- | |||||
| 33 | A4405501 | Spring, Solenoid |
|
- | |||||
| 34 | B5004401 | Switch, Limit |
|
- | |||||
| 35 | M0270501 | Washer |
|
- | |||||
| 36 | M0270515 | Washer |
|
- | |||||
| 37 | C2705401 | Assy, Latch Solenoid |
|
- | |||||
| 38 | B5004501 | Arm |
|
- | |||||
| 39 | D8506201 | Retainer |
|
- | |||||
| 40 | M0110503 | Clip |
|
- | |||||
| 41 | D8508301 | Assy, Door Latch (10442001) |
|
- | |||||
| 42 | B5002301 | Insulation K |
|
- | |||||
| 44 | C2706401 | Duct-vent |
|
- | |||||
| 45 | B5003501 | Cover |
|
- | |||||
| 46 | M0213931 | Screw |
|
- | |||||
| 47 | A4406901 | Strap-grd |
|
- | |||||
| 48 | M0282402 | Usr 0041847 |
|
- | |||||
| 49 | M0119101 | Clip-speed Nut |
|
- | |||||
| 50 | M0270001 | Washer |
|
- | |||||
| 51 | M0110503 | Clip |
|
- | |||||
| 52 | M0227804 | Screw |
|
- | |||||
| 53 | M0102311 | Clamp |
|
- | |||||
| 55 | D8530901 | Stiffener |
|
- | |||||
| 56 | M0211543 | Screw |
|
- | |||||
| 57 | D8528702 | Ext Corner Post |
|
- | |||||
| 57 | D8528701 | Ext Corner Post |
|
- | |||||
| 58 | WP4312464 | Screw (Replaces: M0211029) |
|
$ 6.26 |
