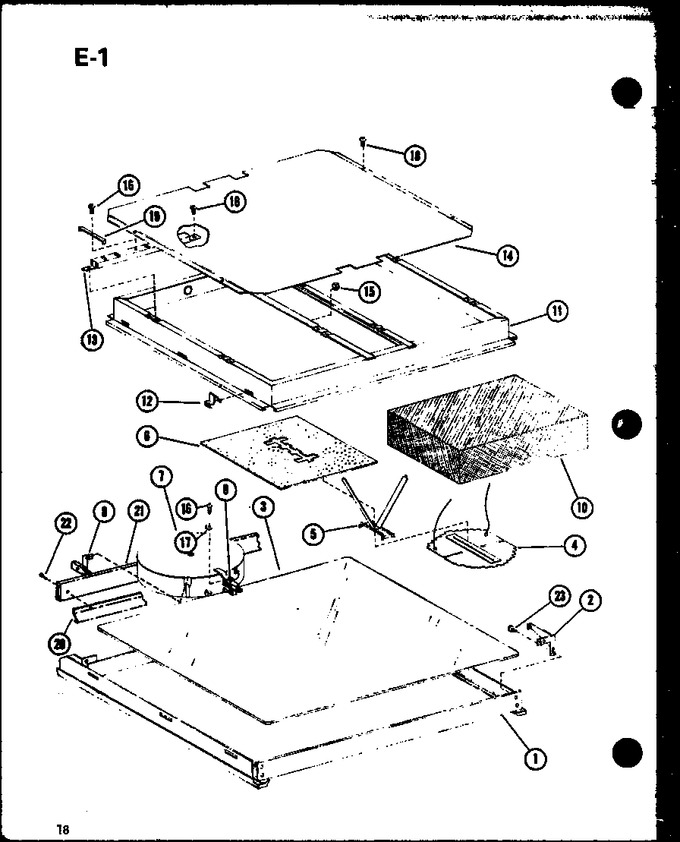

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D8533001		Ring-top Frame		Appelez-nous	-
2	B5005801		Brkt-front L		Appelez-nous	-
2	B5005802		Brkt-front R		Appelez-nous	-
3	D8511202		Heater Panel, Glass Top, R1575		Appelez-nous	-
4	R0157528		Element Kit, Small		Appelez-nous	-
4	R0157527		Element Kit, Large		Appelez-nous	-
5	C2701701		Hld Down Assy		Appelez-nous	-
6	C2702001		Insul-lo-con K		Appelez-nous	-
6	C2702002		Insulation Lo-con K		Appelez-nous	-
7	D8527201		See Svc Ltr Cba-136		Appelez-nous	-
8	C2702401		See Serv Ltr Cba-136		Appelez-nous	-
9	C2712101		Switch		Appelez-nous	-
10	R0157513		Insulation Kit		Appelez-nous	-
11	D8508501		Htr Box Assy		Appelez-nous	-
12	B5001502		Clip		Appelez-nous	-
13	C2705701		Bar-hold Down		Appelez-nous	-
14	C2704201		Cover-htr Box		Appelez-nous	-
15	M0110503		Clip		Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0211019)			Immediately	$ 6.26
17	M0270501		Washer		Appelez-nous	-
18	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.04
19	B5001201		Spring		Appelez-nous	-
20	C2706101		Guard		Appelez-nous	-
21	D8509401		Grille, Front		Appelez-nous	-
22	M0217616		Screw		Appelez-nous	-
23	M0213931		Screw		Appelez-nous	-
