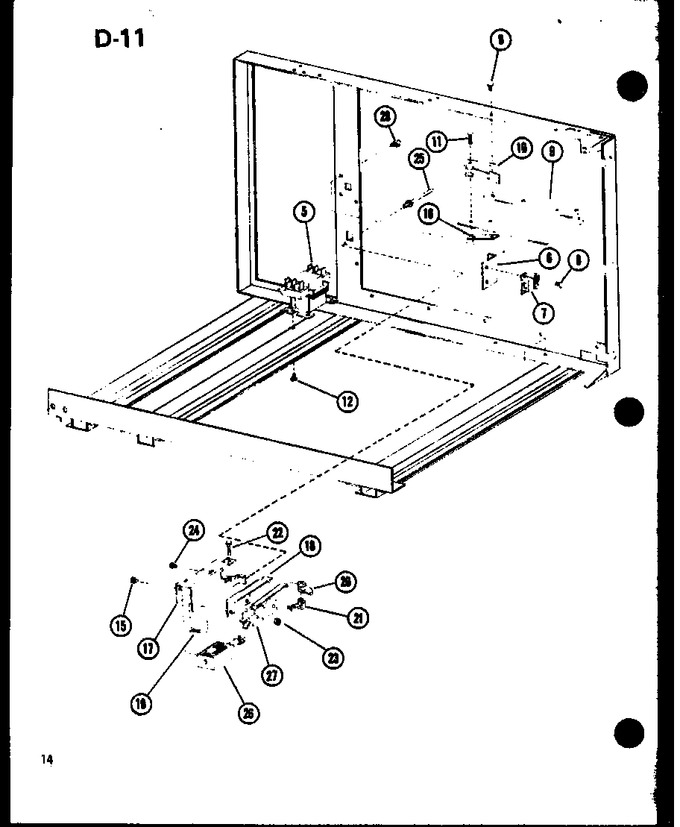

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | C3656303 | Relay A |
|
- | |||||
| 6 | A3222702 | Bracket |
|
- | |||||
| 7 | A3232302 | Catch, Door |
|
- | |||||
| 8 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 9 | C8805501 | Bracket, Switch |
|
- | |||||
| 10 | B8304401 | Switch Wld |
|
- | |||||
| 11 | M0202521 | Screw |
|
- | |||||
| 12 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 15 | M0211514 | Screw A K |
|
- | |||||
| 16 | M0289502 | Speed Nut |
|
- | |||||
| 17 | C8782402 | Bracket Latch K |
|
- | |||||
| 18 | B5769001 | Latch Spring |
|
- | |||||
| 19 | M0202521 | Screw |
|
- | |||||
| 20 | B5672502 | Bell Crank |
|
- | |||||
| 21 | B5672503 | Bell Crank |
|
- | |||||
| 22 | A3182602 | Pin-bell Crank |
|
- | |||||
| 23 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 24 | M0203014 | Screw |
|
- | |||||
| 25 | A4539601 | Pop Rivet |
|
- | |||||
| 26 | B5682103 | Solenoid, Door Locking |
|
- | |||||
| 27 | A3163412 | Switch Preform A |
|
- | |||||
| 28 | M0230015 | Screw |
|
- |
