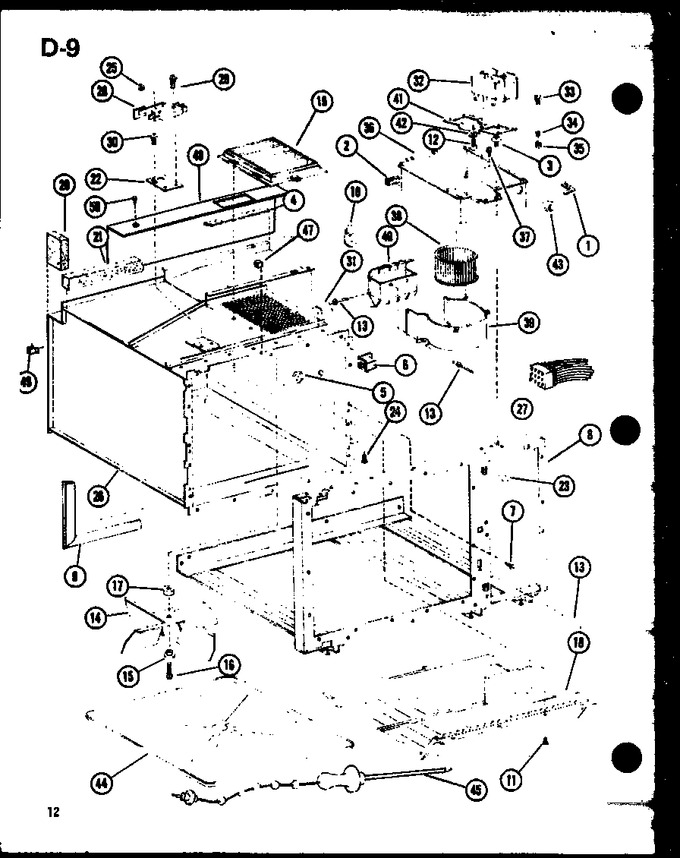

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3030332		Gasket-per Ft		Appelez-nous	-
2	A3030316		Gasket		Appelez-nous	-
3	M0230015		Screw		Appelez-nous	-
4	A3030330		Gasket,per Ft		Appelez-nous	-
5	A3275701		Nut-decorative		Appelez-nous	-
6	B5771902		Switch-jack Assy		Appelez-nous	-
7	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
8	D7353102		Yoke Wld		Appelez-nous	-
9	D7302501		Gasket		Appelez-nous	-
10	B5665803		Thermal Cut-out		Appelez-nous	-
11	M0230015		Screw		Appelez-nous	-
12	M0202642		Screw		Appelez-nous	-
13	A4539601		Pop Rivet		Appelez-nous	-
14	C8720801		Xfan Blade-stirrer		Appelez-nous	-
15	A3214801		Bearing		Appelez-nous	-
16	A3214903		Shoulder Screw		Appelez-nous	-
17	B5704203		Bushing-stirrer Mt		Appelez-nous	-
18	D7352601		Grease Shield		Appelez-nous	-
19	C8714801		Air Duct		Appelez-nous	-
20	B5695301		Gasket		Appelez-nous	-
21	B5695302		Gasket, Air Sealing		Appelez-nous	-
22	B5765901		Bracket-switch		Appelez-nous	-
23	A1511502		Bumper		Appelez-nous	-
24	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
25	A3145101		Washer K		Appelez-nous	-
26	D7168318		Oven Wld		Appelez-nous	-
27	D7404801		Wire Harness		Appelez-nous	-
28	B5666510		Switch Wld		Appelez-nous	-
29	M0227520		Screw		Appelez-nous	-
30	M0234114		Screw		Appelez-nous	-
31	M0118801		Clip		Appelez-nous	-
32	B5736103		Motor		Appelez-nous	-
33	M0227303		Screw		Appelez-nous	-
34	A0381401		Eyelet K		Appelez-nous	-
35	YA0381501		Clip, Waterline		Appelez-nous	-
36	C8805302		Hanger Wld		Appelez-nous	-
37	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
38	C3670803		Blower Wheel		Appelez-nous	-
39	C8805601		Scroll		Appelez-nous	-
40	B5783601		Air Duct		Appelez-nous	-
41	B5647301		Motor Mount		Appelez-nous	-
42	M0272605		Washer		Appelez-nous	-
43	A3258801		Grommet		Appelez-nous	-
44	D7089603		Oven Tray Kit		Appelez-nous	-
45	C8821503		Temp Probe		Appelez-nous	-
47	M0110505		Clip-cable		Appelez-nous	-
48	D8553501		Duct Cover		Appelez-nous	-
49	M0113501		Clip		Appelez-nous	-
50	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
NI	M0027533		Tape		Appelez-nous	-
