SELECT A DIAGRAM

01 - Arctic/fresh/select Zone Compartment


02 - Arctic/fresh/select Zone Doors


03 - Enclosure


04 - Fountain


05 - Freezer Compartment


06 - Freezer Door


07 - Freezer Shelves


08 - Hinges/front Wheels


09 - Ice Bin


10 - Ice Maker


11 - Machine Compartment-compressor


12 - Refrigerator Compartment


13 - Refrigerator Door


14 - Refrigerator Shelves

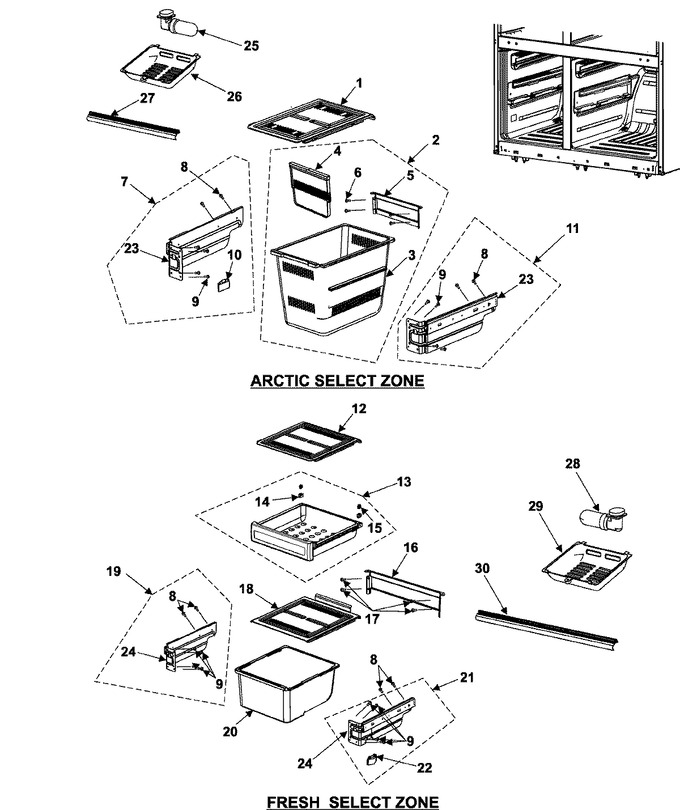

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA63-02672A		Cover-cf Basket,upp		Appelez-nous	-
2	Y00000000		See Note Assy Case-cf Basket Currently Unavailable		Appelez-nous	-
3	DA61-02610A		Case-cf Basket;next		Appelez-nous	-
4	DA67-01260A		Partition-cf, Basket;next		Appelez-nous	-
5	Y00000000		See Note Connector-hanger-cf Currently Unavailable		Appelez-nous	-
6	6002-000588		Screw-tapping;th,+,2,m4,l6,zpc		Appelez-nous	-
7	DA97-03091A		Assy Rail-slide Cf,l				$ 172.16
8	6002-001122		Screw-tapping			Immediately	$ 1.66
9	Y00000000		See Note Screw-tapping Currently Unavailable		Appelez-nous	-
10	DA34-00039A		Switch Pressure-conv		Appelez-nous	-
11	DA97-03092A		Assy Rail Slide Cf,r				$ 143.78
12	DA63-02676A		Cover-cr Veg,upp		Appelez-nous	-
13	DA97-02945A		Assy Case-cr Veg,upp		Appelez-nous	-
14	DA71-20277A		Fixer-roller			Immediately	$ 2.50
15	DA66-10104A		Roller-fre				$ 4.00
16	Y00000000		See Note Connector Hanger-cr Currently Unavailable		Appelez-nous	-
17	6002-000588		Screw-tapping;th,+,2,m4,l6,zpc		Appelez-nous	-
18	DA63-02675A		Cover-cr Veg,low				$ 108.82
19	DA97-03093A		Assy Rail-slide Cr,l				$ 167.45
20	DA61-02324A		Case-cr Veg,low				$ 121.46
21	DA97-03094A		Assy Rail-slide Cr,r				$ 147.10
22	DA34-00039A		Switch Pressure-conv		Appelez-nous	-
23	DA61-02604A		Guide-rail,cf;next		Appelez-nous	-
24	DA61-02658A		Guide Rail-cr;next		Appelez-nous	-
25	555555		Lamp-incandescent   (Replaces: 4713-001172)				$ 151.94
26	DA63-02712A		Cover Lamp-convertable;next		Appelez-nous	-
27	DA63-02717A		Gasket-sub Partition Low,l		Appelez-nous	-
28	555555		Lamp-incandescent   (Replaces: 4713-001172)				$ 151.94
29	DA63-02712A		Cover Lamp-convertable;next		Appelez-nous	-
30	DA63-02717B		Gasket-sub Partition Low,r		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
