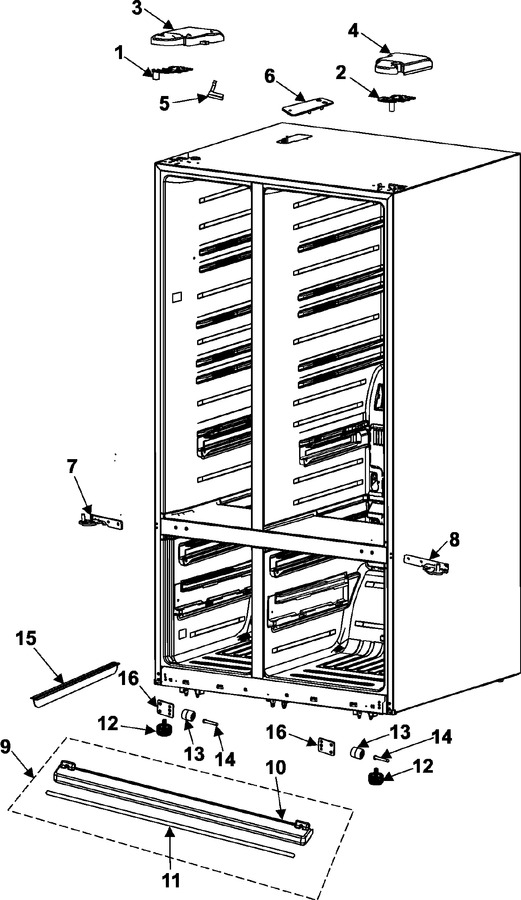

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-03150A		Assy Hinge Upp-l		Appelez-nous	-
1	DA63-50192A		Shim-hinge Upp;abs,left				$ 2.39
2	DA63-50192A		Shim-hinge Upp;abs,left				$ 2.39
2	DA97-03149A		Assy Hinge Upp-r				$ 47.73
3	DA63-02723A		Cover Hinge-up L				$ 28.40
3	DA97-03750A		Assy Cover Hinge-upp,l;next		Appelez-nous	-
4	DA63-02722A		Cover Hinge-up R				$ 29.82
5	DA71-20267A		Fixer Hinge Upp		Appelez-nous	-
6	DA63-01275C		Cover-tube Water;a-top,black,-		Appelez-nous	-
7	DA97-03152A		Assy Hinge Mid-l		Appelez-nous	-
7	DA61-02386A		Hinge-mid,l;next		Appelez-nous	-
8	DA97-03151B		Assy Hinge Mid-r;next				$ 76.97
8	DA61-02385B		Hinge-mid,r;next		Appelez-nous	-
9	DA97-03129A		Assy Cover Leg-front				$ 67.47
10	DA63-02688A		Cover Leg-front				$ 68.23
11	DA64-00125A		Trim-plate Absorber		Appelez-nous	-
12	Y00000000		See Note Foot-front Currently Unavailable		Appelez-nous	-
13	DA61-01871A		Caster;a-top				$ 10.60
14	DA61-01920A		Castor-rivet			Immediately	$ 3.94
15	DA64-01731A		Trim-blade		Appelez-nous	-
16	DA61-02461A		Reinf Cabi-low		Appelez-nous	-
