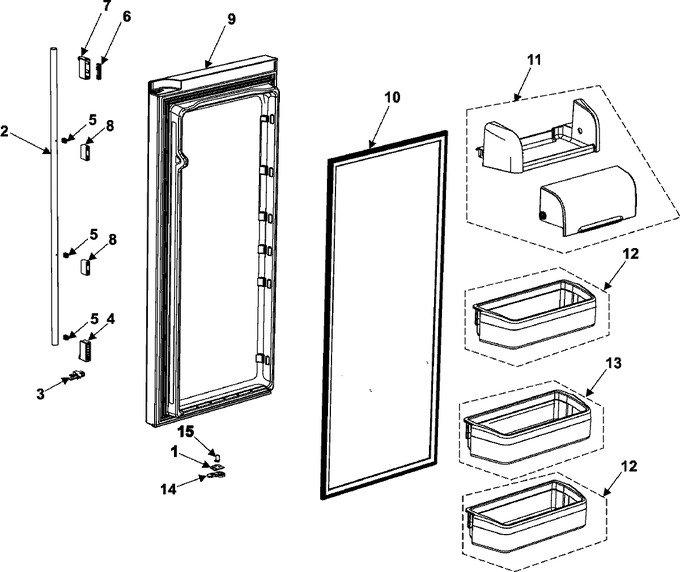

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA61-02383A		Support-door Close;next,pom,-,				$ 7.09
2	DA64-01588A		Handle Bar;next,al(a6063),-,-,				$ 125.06
3	DA61-02363A		Support-cap Handle,low;next				$ 7.73
4	DA67-01267A		Cap-handle Low;in,next,abs,-,				$ 31.83
5	555555		Grommet-fixer Handle   (Replaces: DA63-00789A)				$ 151.94
6	555555		Base-cap Handle   (Replaces: DA61-00831A)				$ 151.94
7	DA67-00773A		Cap-handle				$ 26.78
8	DA61-00264A		Support-handle Mid				$ 43.20
9	DA91-02104A		Assy Door Foam Ref;next700lsd,				$ 251.10
10	DA97-01800V		Assy-gasket Door,ref;next-pjt,				$ 112.96
11	DA97-03100A		Assy Guard-dairy;next,abs,-,-,				$ 71.42
12	DA97-03098A		Assy Guard Ref;next,gpps				$ 90.34
13	DA97-03562A		Assy Guard Ref-bottle				$ 89.51
14	DA61-02374A		Stopper Door-r;next,snp1,t3.0		Appelez-nous	-
15	Y00000000		See Note Grommet Hinge-mid Currently Unavailable		Appelez-nous	-
