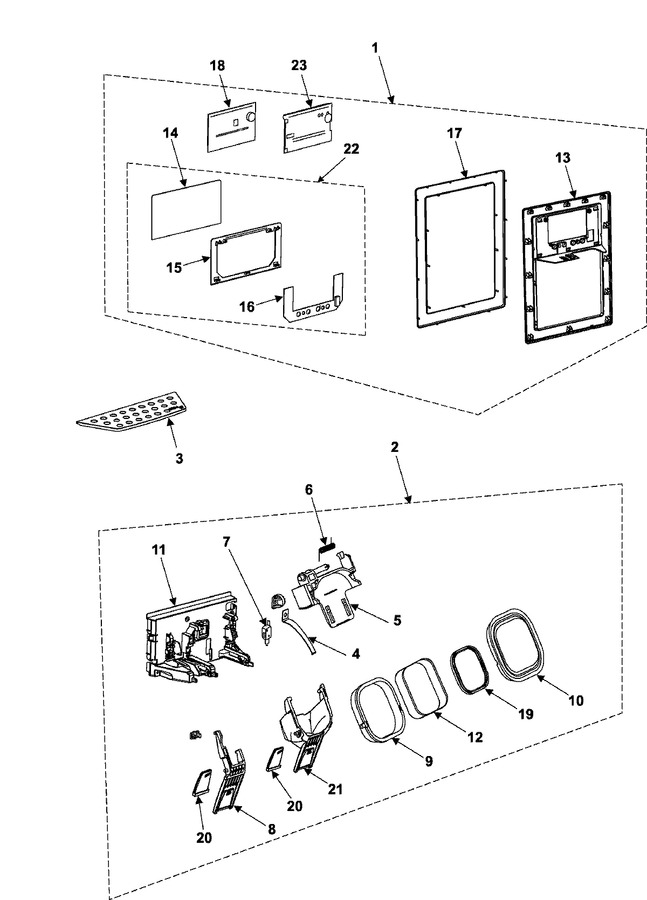

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA41-00217B		Pba-lamp Assy				$ 75.23
1	DA97-03121D		Assy Cover-dispenser;next				$ 200.57
2	DA61-02438A		Spring Etc-lever Dispenser				$ 2.50
2	DA97-03119A		Assy Cover-pcb Panel,rear				$ 87.97
3	DA63-01975B		Tray Dispenser				$ 10.38
4	DA61-01651A		Spring Etc-cover Ice Route				$ 6.38
5	DA63-01970A		Cover-ice Route A				$ 8.47
6	DA61-01616A		Spring Etc-lever Disp Water		Appelez-nous	-
7	DA34-00011B		Switch-micro			Immediately	$ 14.99
8	DA66-00365A		Lever Dispenser-ice;next				$ 13.33
9	DA63-01971A		Cover-ice Route B				$ 4.42
10	DA61-01869A		Oil Damper;ad,pom,-,120g/cm,-,		Appelez-nous	-
10	DA63-01972A		Gasket-cover Ice Route		Appelez-nous	-
11	DA63-02699A		Cover Pcb-panel Rear		Appelez-nous	-
12	DA62-00058E		Seal-cover Ice,route;ad,foam L		Appelez-nous	-
13	DA63-02692A		Cover Dispenser		Appelez-nous	-
14	DA63-02698A		Cover-control Window Front				$ 89.26
15	DA63-02694A		Cover-control Window, Rear		Appelez-nous	-
16	DA41-00319A		Pba Display-touch Panel				$ 141.26
17	DA61-02356A		Plate-cover Dispenser;next,sta		Appelez-nous	-
18	DA41-00312A		Pba Panel				$ 155.38
19	DA62-00058F		Seal-cover Ice,route;ad,foam L		Appelez-nous	-
20	DA66-00352A		Lever Dispenser-sub				$ 16.09
21	DA66-00354A		Lever Dispenser-water		Appelez-nous	-
22	DA97-03632A		Assy Cover Control-window,fron				$ 129.48
23	DA63-02810A		Cover-panel Pcb,rear		Appelez-nous	-
