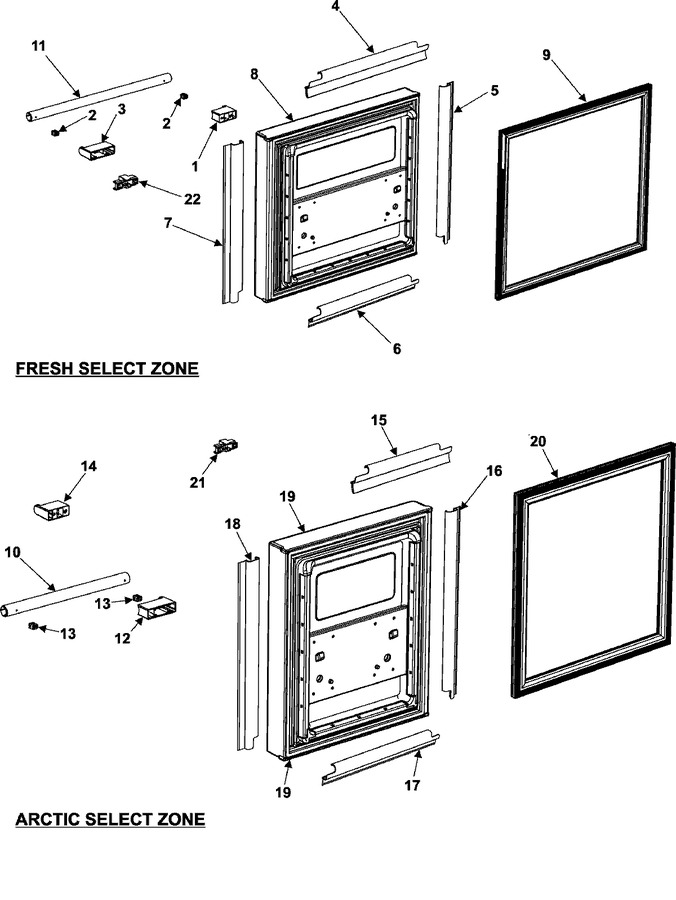

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA61-02363A		Support-cap Handle,low;next				$ 7.73
2	555555		Grommet-fixer Handle   (Replaces: DA63-00789A)				$ 151.94
3	DA67-01266A		Cap-handle Low,out;next,abs				$ 46.40
4	DA63-02724B		Gasket-sub Upp R				$ 29.11
5	DA97-02726A		Gasket-sub Conv Side,r		Appelez-nous	-
6	DA63-02725A		Gasket-sub Conv,low				$ 24.72
7	DA63-02727A		Gasket-sub Conv Side L				$ 28.04
8	DA91-02105A		Assy Door Foam Ref-conv;next				$ 251.10
9	DA97-01800X		Assy Gasket Door Cr;next-pjt				$ 86.72
10	DA64-01588B		Handle Bar				$ 76.95
11	DA64-01588C		Handle Bar;next,al(a6063),-,-,				$ 58.29
12	DA67-01266A		Cap-handle Low,out;next,abs				$ 46.40
13	555555		Grommet-fixer Handle   (Replaces: DA63-00789A)				$ 151.94
14	DA67-01267A		Cap-handle Low;in,next,abs,-,				$ 31.83
15	DA63-02724A		Gasket-sub Upp,l				$ 16.36
16	DA63-02726A		Gasket-sub Conv Side,r				$ 28.04
17	DA63-02725B		Gasket-sub Conv,low				$ 23.99
18	DA63-02727A		Gasket-sub Conv Side L				$ 28.04
19	DA91-02103A		Assy Door Foam Fre-conv				$ 251.10
20	DA97-01800W		Assy-gasket Door Cf				$ 109.85
21	DA61-02363A		Support-cap Handle,low;next				$ 7.73
22	DA67-01267A		Cap-handle Low;in,next,abs,-,				$ 31.83
