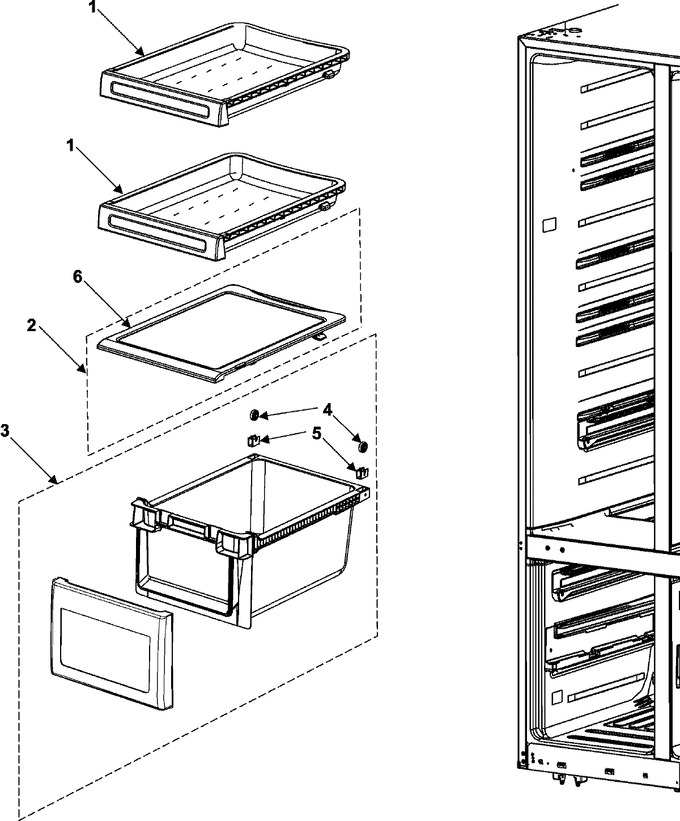

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02956A		Assy Shelf Fre-mid		Appelez-nous	-
2	DA97-02955A		Assy Shelf Fre-low				$ 97.82
3	DA97-02944A		Assy Case-basket,fre				$ 106.68
4	DA66-10104A		Roller-fre				$ 4.00
5	DA71-20277A		Fixer-roller			Immediately	$ 2.50
6	DA64-00090B		Trim-shelf;a-top,ldpe,white,-,		Appelez-nous	-
