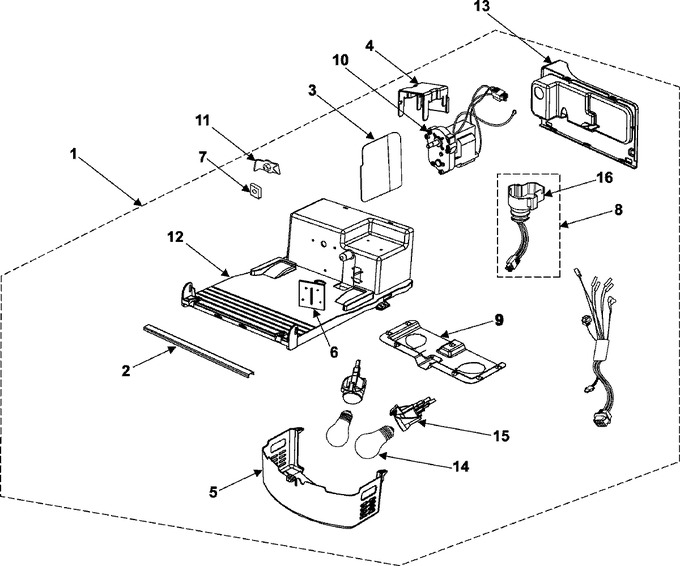

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-03167A		Assy Case-motor Auger		Appelez-nous	-
2	DA61-00239A		Support-case Motor Auger		Appelez-nous	-
3	DA67-01305A		Partition-emi		Appelez-nous	-
3	DA97-03649A		Assy Partition, Emi		Appelez-nous	-
4	DA63-02012A		Cover-motor Auger		Appelez-nous	-
5	DA63-02735A		Cover Lamp-fre,disp		Appelez-nous	-
6	DA73-00168A		Rubber-solenoide		Appelez-nous	-
7	DA71-00163A		Fixer-nut			Immediately	$ 20.08
8	DA97-02120B		Assy Cover-gear Motor		Appelez-nous	-
9	DA61-02409A		Plate-lamp Fre		Appelez-nous	-
10	DA31-00105A		Motor Geard-auger				$ 159.59
11	555555		Plate-drive Auger   (Replaces: DA61-01659B)				$ 151.94
12	DA61-02412A		Case-auger Motor		Appelez-nous	-
13	DA63-02736A		Cover-auger Motor		Appelez-nous	-
14	4713-001201		Lamp-incandescent;230v,0ma,40w		Appelez-nous	-
15	DA47-40001C		Lamp Holder-assy		Appelez-nous	-
16	DA63-01412A		Cover-motor Geared;queen		Appelez-nous	-
