02 - Control Panel
03 - Outer Door Parts
04 - Inner Door Parts
05 - Tub And Frame Parts
06 - Inner Tub Parts
07 - Motor Pump And Power Dry Motor Part
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

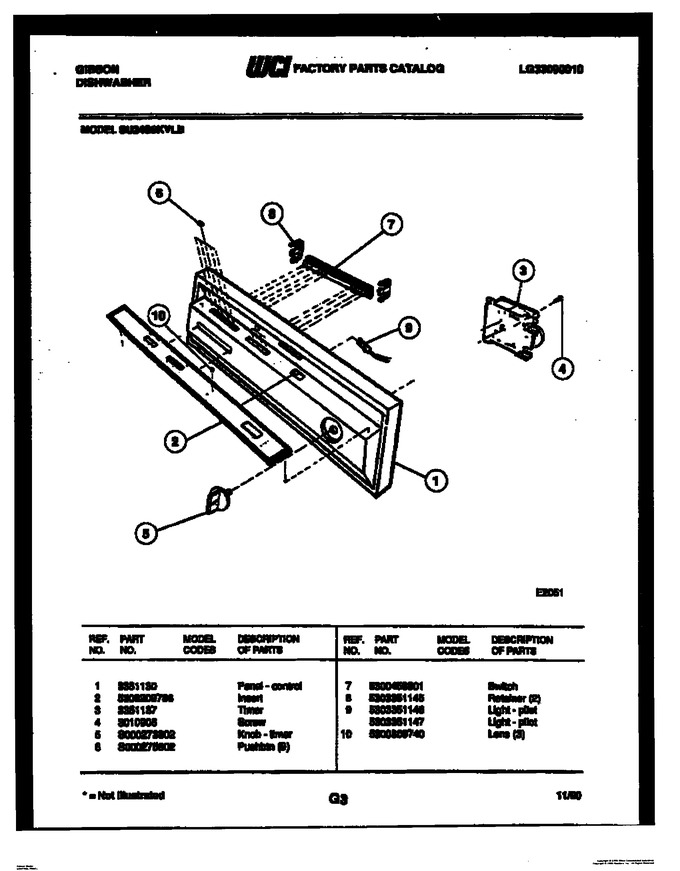

| 1 | 3351130 | Panel, Control |
|
- | |||||
| 2 | 5303209786 | Insert |
|
- | |||||
| 3 | 3351137 | Timer |
|
- | |||||
| 4 | 3010906 | Screw |
|
- | |||||
| 5 | S000273802 | Knob - Timer |
|
- | |||||
| 6 | S000275602 | Pushbtn (9) |
|
- | |||||
| 7 | 5300458801 | Switch |
|
- | |||||
| 8 | 5303351145 | Retainer (2) |
|
- | |||||
| 9 | 5303351146 | Light - Pilot |
|
- | |||||
| 9 | 5303351147 | Light - Pilot |
|
- | |||||
| 10 | 5300809740 | Lens (3) |
|
- |
