02 - Control Panel
03 - Outer Door Parts

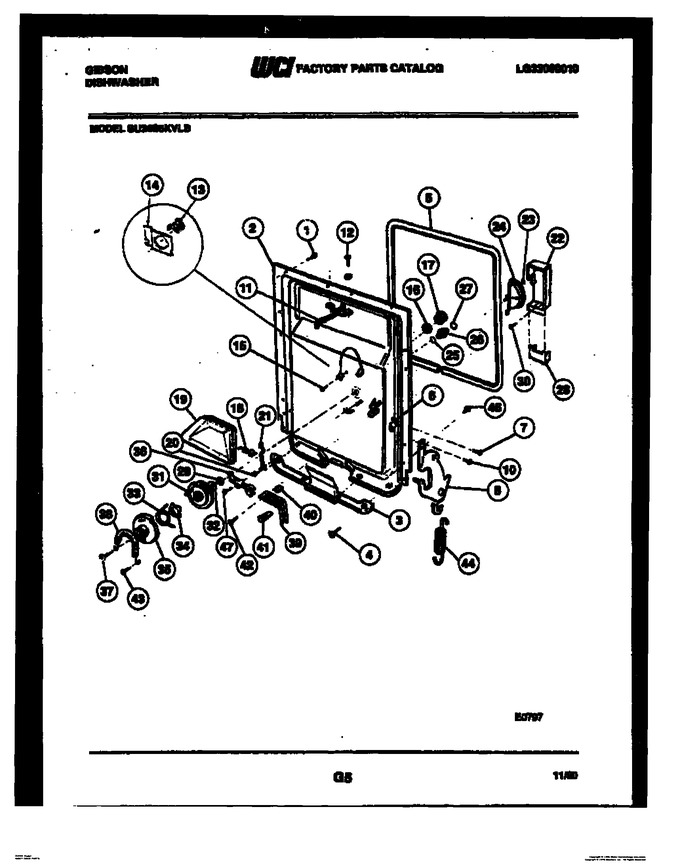

04 - Inner Door Parts
05 - Tub And Frame Parts
06 - Inner Tub Parts
07 - Motor Pump And Power Dry Motor Part
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014823 | Screw (6) |
|
- | |||||
| 2 | 5303351089 | Pnl - Inner Door |
|
- | |||||
| 3 | 5303211094 | Retainer - Gasket |
|
- | |||||
| 4 | 08014825 | Screw - Retainer (4) |
|
- | |||||
| 5 | 5308016252 | Gasket - Door |
|
- | |||||
| 6 | 08014832 | Clip - Plastic |
|
- | |||||
| 7 | 3351094 | Screw, Clip |
|
- | |||||
| 8 | 5303351095 | Hinge - Door Rh |
|
- | |||||
| 8 | 5303351096 | Hinge - Door Lh |
|
- | |||||
| 10 | 3351094 | Screw, Hinge |
|
- | |||||
| 11 | 5303351097 | Latch |
|
- | |||||
| 12 | 3351098 | Screw - Latch (2) |
|
- | |||||
| 13 | 5300114003 | Thermostat |
|
- | |||||
| 14 | 3351100 | Clip, Therm. |
|
- | |||||
| 15 | 5303351101 | Gasket - Disp. |
|
- | |||||
| 16 | 3351102 | Nut, Disp. |
|
- | |||||
| 17 | 5303351103 | Cover - Disp. |
|
$ 22.20 | |||||
| 18 | 5303351104 | Shaft - Connecting |
|
- | |||||
| 19 | 5303351105 | Container |
|
- | |||||
| 20 | 3351106 | Screw, Disp. Sprg |
|
- | |||||
| 21 | 5303351107 | Spring, Disp. |
|
- | |||||
| 22 | 5303351108 | Cover - Deter. |
|
- | |||||
| 23 | 3351109 | O-ring |
|
- | |||||
| 24 | 5303351110 | Cup - Deter. |
|
- | |||||
| 25 | 3351112 | O-ring |
|
- | |||||
| 26 | 5303351113 | Bearing - Cup |
|
- | |||||
| 27 | 5303351114 | O-ring |
|
- | |||||
| 28 | 3351115 | Cup |
|
- | |||||
| 29 | 5303351116 | Nut - Bearing |
|
- | |||||
| 30 | 3351117 | Screw, Cover |
|
- | |||||
| 31 | 5303351118 | Wheel - Cup Stop |
|
- | |||||
| 32 | 5303351119 | Spacer |
|
- | |||||
| 33 | 5303351120 | Spring - Clutch |
|
- | |||||
| 34 | 5303351121 | Snubber |
|
- | |||||
| 35 | 5303351122 | Wheel - Clutch |
|
- | |||||
| 36 | 3351123 | Trip Lever |
|
- | |||||
| 37 | 3351117 | Screw |
|
- | |||||
| 38 | 5303351124 | Spring - Detergent Cup |
|
- | |||||
| 39 | 5303351125 | Bi Metal - Actuator |
|
- | |||||
| 40 | 5303351126 | Block |
|
- | |||||
| 41 | 3351127 | Wedge |
|
- | |||||
| 42 | 08014826 | Screw |
|
- | |||||
| 43 | 08014824 | Screw |
|
- | |||||
| 44 | 5303351155 | Spring (2) |
|
- | |||||
| 46 | 3351094 | Screw, Hinge |
|
- | |||||
| 47 | 3351117 | Screw |
|
- |
