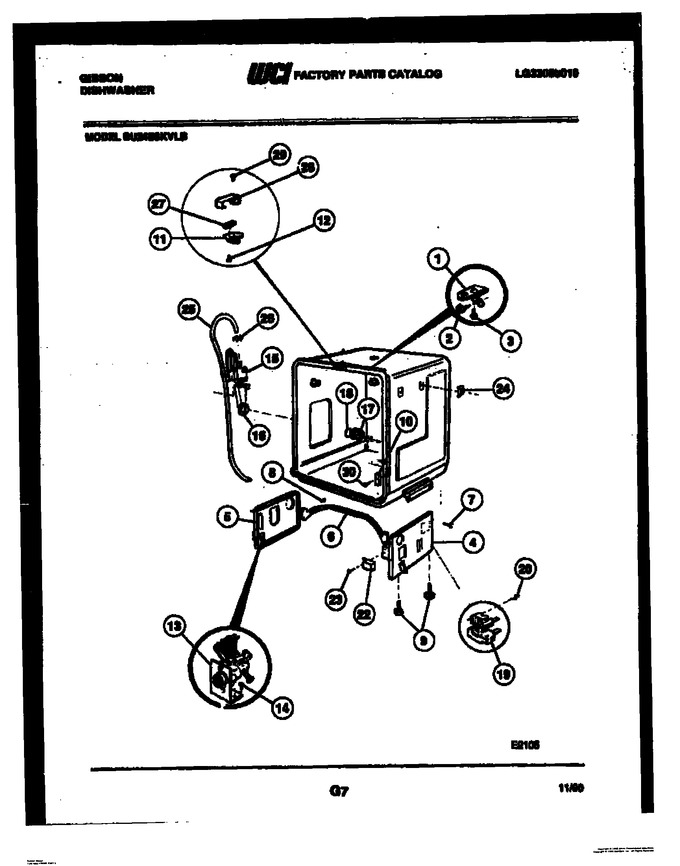

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303351011		Brkt. Tub To Counter Top		Appelez-nous	-
2	5300809678		Screw Brkt. (2)		Appelez-nous	-
3	3351013		Screw Brkt.		Appelez-nous	-
4	08057444		Supt - Tub Rh		Appelez-nous	-
5	08057445		Supt - Tub Lh		Appelez-nous	-
6	3351016		Brace, Cross		Appelez-nous	-
7	3351058		Screw - Supt.		Appelez-nous	-
8	3351058		Screw - Cross Br.		Appelez-nous	-
9	3351018		Screw - Level (4)		Appelez-nous	-
10	3351022		Cover - Tub Flng (2)		Appelez-nous	-
11	5303351024		Strike		Appelez-nous	-
12	5300013601		Screw - Strike (2)		Appelez-nous	-
13	5303351026		Valve - Fill				$ 146.37
14	3351058		Screw - Valve		Appelez-nous	-
15	5303351030		Cap - Fill		Appelez-nous	-
16	5303351031		Inlet - Water		Appelez-nous	-
17	08014814		Nut-inlet		Appelez-nous	-
18	3351033		Gasket, Inlet		Appelez-nous	-
19	5303351059		Relay				$ 8.35
20	5300006902		Screw - Relay		Appelez-nous	-
22	08057593		Box - Connec.		Appelez-nous	-
23	3351058		Screw		Appelez-nous	-
24	5303351087		Chnl - Rack (4)		Appelez-nous	-
25	08016576		Hose Fill		Appelez-nous	-
26	5303208142		Clamp (2)		Appelez-nous	-
27	5303351159		Switch - Latch		Appelez-nous	-
28	08013433		Shield		Appelez-nous	-
29	3351161		Screw (2)		Appelez-nous	-
30	08001088		Screw		Appelez-nous	-
16A	5300809730		Cap - Water Inlet (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
