02 - Control Panel
03 - Outer Door Parts
04 - Inner Door Parts
05 - Tub And Frame Parts
06 - Inner Tub Parts
07 - Motor Pump And Power Dry Motor Part
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

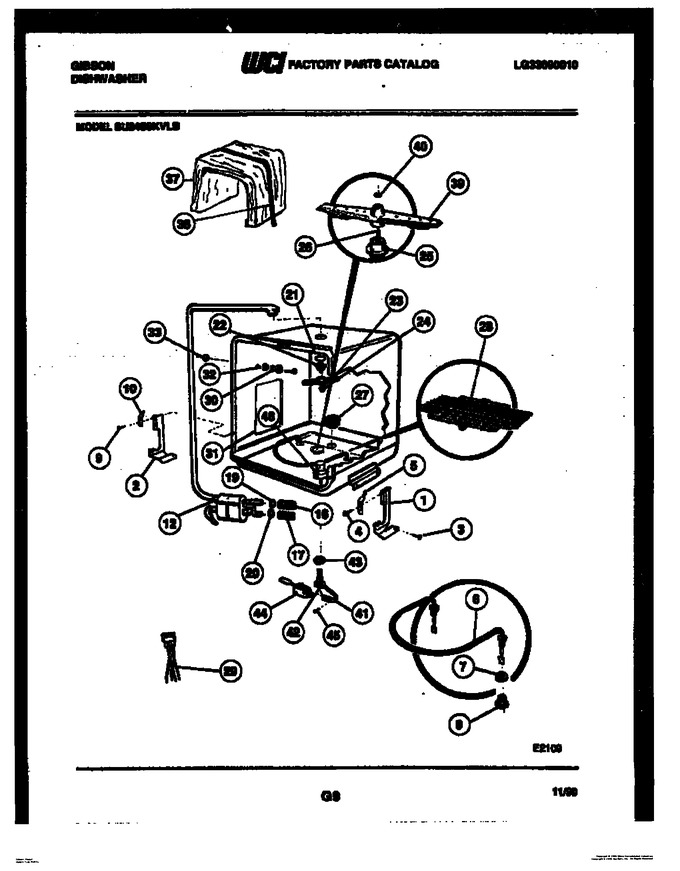

| 1 | 5308014861 | Hng - Tub Rh |
|
- | |||||
| 2 | 5308014862 | Hng - Tub Lh |
|
- | |||||
| 3 | 3351094 | Screw - Hng To Tub |
|
- | |||||
| 4 | 3351058 | Screw - Hinge |
|
- | |||||
| 5 | 3351023 | Gasket - Hinge (2) |
|
- | |||||
| 6 | 5308014867 | Htr. W/ Gasket & Nut |
|
$ 169.73 | |||||
| 7 | 5303351028 | Gasket - Htr |
|
- | |||||
| 8 | 154106202 | Nut - Heater (Replaces: 5300806834) |
|
Immediately | $ 18.32 | ||||
| 9 | 3351058 | Screw - Hinge |
|
- | |||||
| 10 | 3351023 | Gasket, Hinge |
|
- | |||||
| 12 | 5303211098 | Filter Assy |
|
- | |||||
| 16 | 5303351066 | Hose - Wash |
|
- | |||||
| 17 | 5303351067 | Hose - Drain |
|
- | |||||
| 19 | 5303351064 | Clamp - Top |
|
- | |||||
| 20 | 08014887 | Clamp - Bottom |
|
- | |||||
| 21 | 5303351069 | O-ring |
|
- | |||||
| 22 | 08015648 | Support - Pivot |
|
- | |||||
| 23 | 5303351071 | Wash Arm 3rd Lvl |
|
$ 40.95 | |||||
| 24 | 5303351072 | Bearing |
|
- | |||||
| 25 | 5308950177 | Support - Wash Arm |
|
- | |||||
| 26 | 5308016737 | Spring - Wash Arm |
|
- | |||||
| 27 | 5308014853 | Screen - Threaded |
|
- | |||||
| 28 | 5303351080 | Baffle - Water |
|
- | |||||
| 29 | 08016062 | Harness - Tub |
|
- | |||||
| 30 | 3351083 | Rolr, Upper Rack |
|
- | |||||
| 31 | 5308008594 | Screw - Roller |
|
- | |||||
| 32 | 3351085 | Washer - Roller (4) |
|
$ 6.41 | |||||
| 33 | 5303351086 | Nut - Roller |
|
- | |||||
| 37 | 5303351153 | Insul. Tub W/ Strap |
|
- | |||||
| 38 | 3351154 | Strap |
|
- | |||||
| 39 | 5303943002 | Wash Arm |
|
- | |||||
| 40 | 316205500 | Nut (Replaces: 5303351163) |
|
$ 11.34 | |||||
| 41 | 5303351164 | Guide - Float |
|
- | |||||
| 42 | 5303351165 | Gasket |
|
- | |||||
| 43 | 5300125401 | Nut |
|
- | |||||
| 44 | 5308016030 | Switch - Float |
|
- | |||||
| 45 | 3351168 | Screw |
|
- | |||||
| 46 | 5303351169 | Float |
|
$ 30.98 | |||||
| 6A | 5300806833 | Grommet - Heater (2) (non-illustrated) |
|
$ 5.34 |
