07 - Motor Pump And Power Dry Motor Part


08 - Racks And Trays

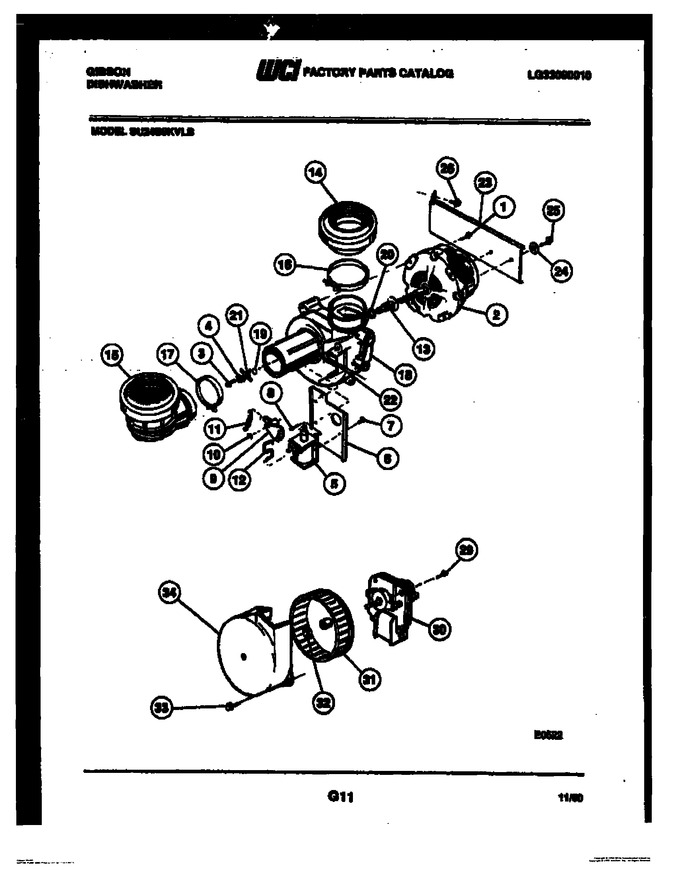

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3351035		Screw - Motor Mtg. (4)		Appelez-nous	-
2	94614-1		Motor - Main		Appelez-nous	-
3	3351036		Screw, Shaft		Appelez-nous	-
4	3351037		Lock Washer - Shaft		Appelez-nous	-
5	5303351038		Solenoid		Appelez-nous	-
6	3351039		Brkt, Solenoid		Appelez-nous	-
7	3351058		Screw - Solenoid		Appelez-nous	-
8	S000012801		Screw - Brkt. (2)		Appelez-nous	-
9	5303351041		Lever - Drain		Appelez-nous	-
10	08014811		Retainer - Lever		Appelez-nous	-
11	5303351043		Spring - Lever		Appelez-nous	-
12	5303351044		Link - Solenoid		Appelez-nous	-
13	5303351045		Protector - Shaft				$ 6.54
14	5308057589		Boot		Appelez-nous	-
15	5303351047		Elbow		Appelez-nous	-
16	5303351048		Clamp - Boot		Appelez-nous	-
17	3351049		Clamp, Elbow		Appelez-nous	-
18	5303018307		Pump - Sealed				$ 106.84
19	5303351051		O - Ring		Appelez-nous	-
20	5303351052		O - Ring Mtr. Shaft (3)				$ 4.58
21	3351053		Blade - Chopper		Appelez-nous	-
22	5303351054		Seal - Drain Shaft (2)				$ 21.30
23	3351055		Bracket - Motor Mtg.		Appelez-nous	-
24	5300009401		Grommet (2)		Appelez-nous	-
25	351057		Screw - Brkt To Mtr (2)		Appelez-nous	-
26	3351058		Screw - Brkt To Support (19)		Appelez-nous	-
27	5303943001		Hose Drain		Appelez-nous	-
28	5303351076		Clamp - Drain Hose		Appelez-nous	-
29	5300809731		Screw (2)		Appelez-nous	-
30	5300809725		Motor		Appelez-nous	-
31	08016015		Wheel-blower				$ 13.05
32	3351232		Clamp		Appelez-nous	-
33	5300809731		Screw		Appelez-nous	-
34	5300809726		Housing		Appelez-nous	-
