Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303208275 Guide W/ Cap Appelez-nous -
2 5308015650 Cap Rh Appelez-nous -
3 5303208275 Guide W/ Cap Appelez-nous -
4 5303351173 Cap Lh Appelez-nous -
5 5308007029 Pin Appelez-nous -
6 5308007029 Pin Appelez-nous -
7 S000703404 Rackupper Appelez-nous -
8 5303351083 Roller (4) Appelez-nous -
10 5308000626 Support (8) Special Order $ 22.70

11 5308000627 Wheel (8) Special Order $ 36.07

12 5303011025 Tower Appelez-nous -
13 WS459402 Rack Lwr. Appelez-nous -
14 5300403504 Basket Appelez-nous -
15 194C580H03 Handle Appelez-nous -
16 5303207997 Cover Appelez-nous -
17 3205549 Gasket Special Order $ 20.56


    View Diagram in Separate Window     Print Icon   Print Part List

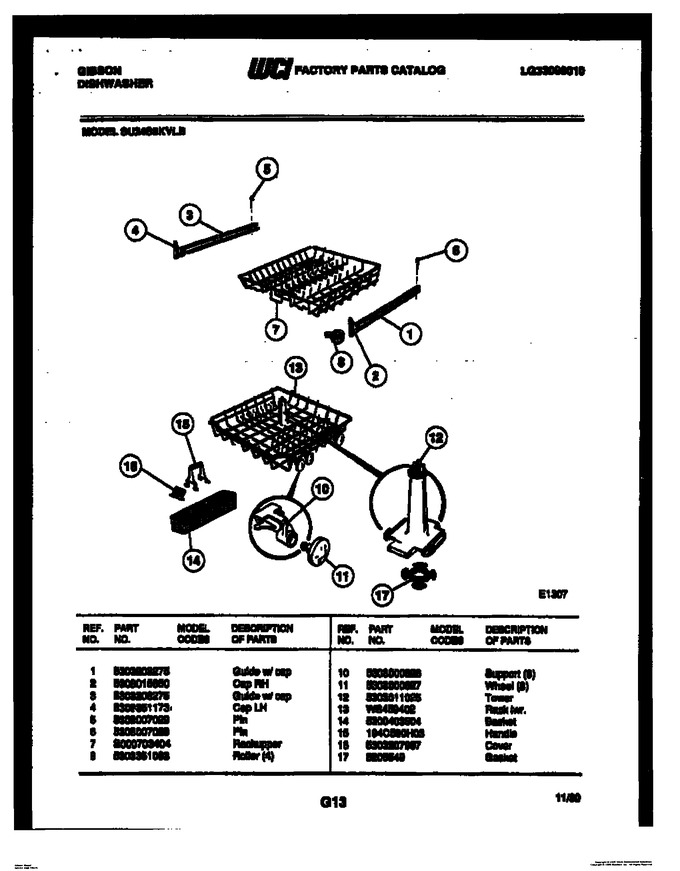

Diagram for SU24S8KVLB
