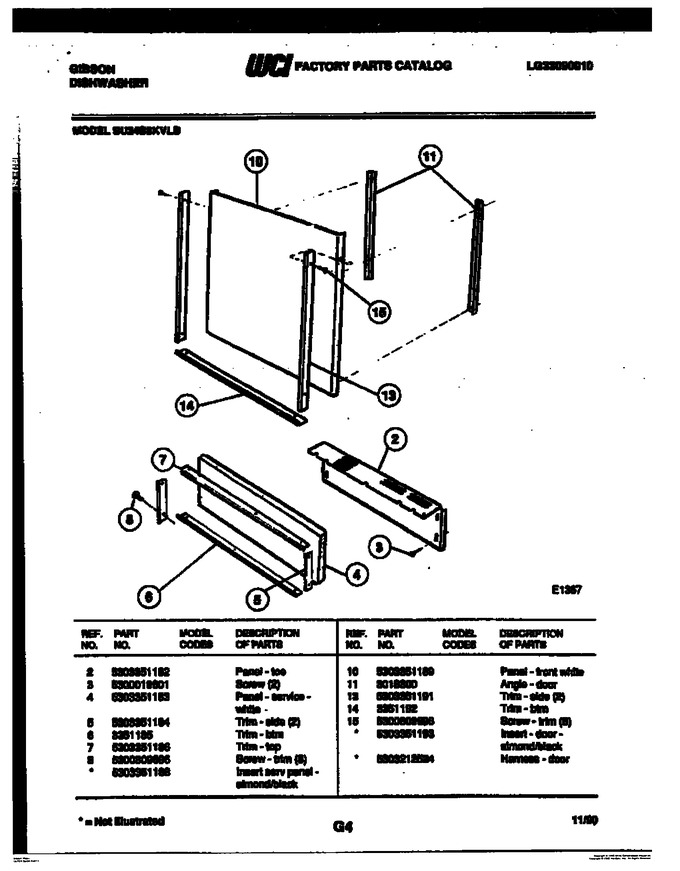

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303351182		Panel - Toe		Appelez-nous	-
3	5300019601		Screw (2)		Appelez-nous	-
4	5303351183		Panel - Service - White		Appelez-nous	-
5	5303351184		Trim - Side (2)		Appelez-nous	-
6	3351185		Trim, Btm		Appelez-nous	-
7	5303351186		Trim - Top		Appelez-nous	-
8	5300809696		Screw - Trim (8)		Appelez-nous	-
10	5303351189		Panel - Front White		Appelez-nous	-
11	3018300		Angle - Door		Appelez-nous	-
13	5303351191		Trim - Side (2)		Appelez-nous	-
14	3351192		Trim, Btm		Appelez-nous	-
15	5300809696		Screw - Trim (8)		Appelez-nous	-
*29954	5303212524		Harness - Door		Appelez-nous	-
*29954	5303351193		Insert - Door - Almond/black		Appelez-nous	-
8A	5303351188		Insert Serv Panel - Almond/black (non-illustrated)		Appelez-nous	-
