Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9759441 Conversion Instructions Appelez-nous -
1 9762761 Safer Cooking Tips (english) Appelez-nous -
1 W10065852 Safer Cooking Tips (french) Appelez-nous -
1 9760618 Installation Instructions Appelez-nous -
1 W10162193 Use & Care Guide Appelez-nous -
1 W10185212 Tech Sheet Appelez-nous -
2 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

7 9761161 Top, Chassis Appelez-nous -
8 W10105790 Bumper, Door Special Order $ 6.35

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 104.97

10 W10169756 Lens, Light Special Order $ 36.16

11 WPW10307114 Assembly, Oven Light   (Replaces: W10009940) In-Stock Immediately $ 99.44

12 WPW10169757 Bulb, Light   (Replaces: W10169757) In-Stock Immediately $ 42.64

13 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 103.82

13 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 107.47

14 W10115832 Frame, Front Appelez-nous -
15 W11676901 Gasket, Door   (Replaces: 8300142) Special Order $ 63.24

16 4452152 Bracket, Mounting Special Order $ 30.15

19 8300184 Support, Insulation Appelez-nous -
21 4455510 Bracket, Support Appelez-nous -
24 WP9760889 Latch, Motorized   (Replaces: 9760889) In-Stock Immediately $ 295.79

26 9761160 Back, Chassis Appelez-nous -
28 W10131328 Extension, Chassis Base Appelez-nous -
29 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 86.25

30 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

31 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

32 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

33 WP4450249 Thermostat (tod)   (Replaces: 4450249) In-Stock Immediately $ 181.29

34 9758831 Base, Chassis Appelez-nous -
35 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 7.97

36 9758583 Cover, Back Special Order $ 215.30

8300159 Insulation, Back Appelez-nous -
8300158 Insulation, Wrap Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

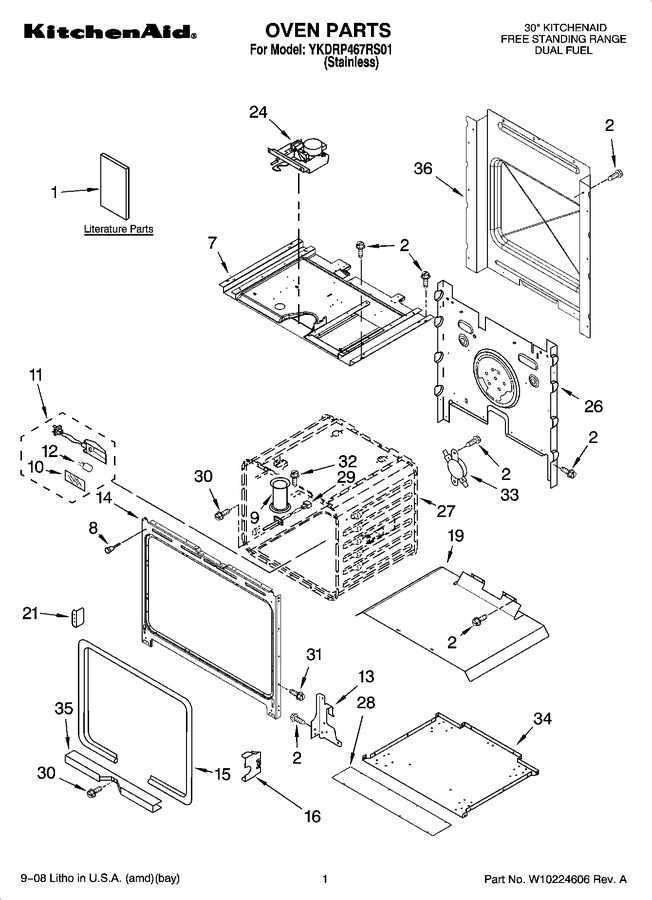

Diagram for YKDRP467RS01
