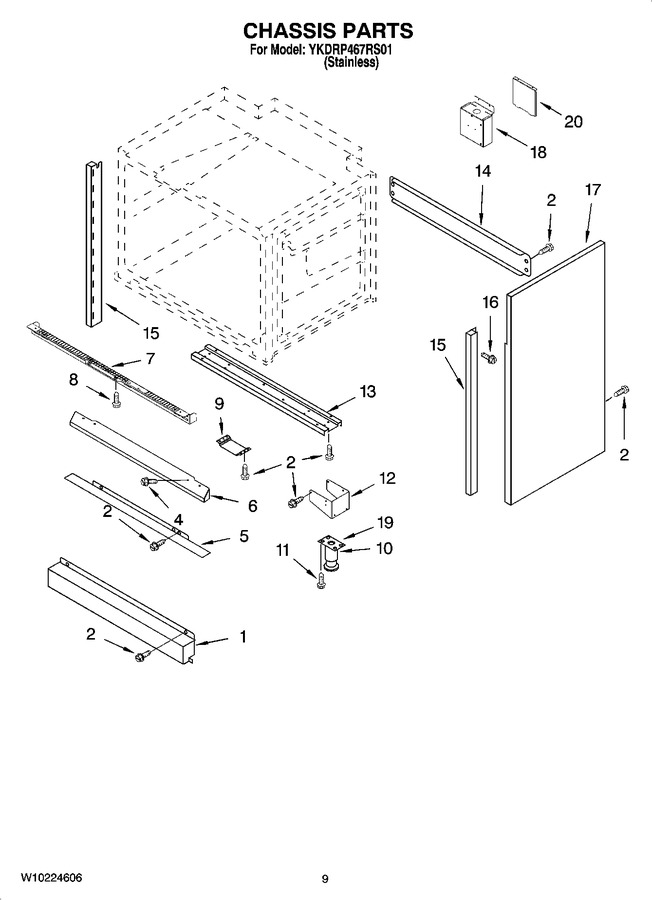

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10155774 | Vent, Bottom Lower |
|
- | |||||
| 2 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 4 | WP3400805 | Screw (Replaces: 3400837) |
|
$ 6.47 | |||||
| 5 | W10157514 | Deflector, Center |
|
- | |||||
| 6 | W10168680 | Vent, Bottom Upper |
|
- | |||||
| 7 | W10157576 | Vent, Center |
|
- | |||||
| 8 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | 9759092 | Bracket, Mounting Regulator |
|
- | |||||
| 10 | WP9759117 | Foot Assembly (Replaces: 9759117) |
|
$ 127.42 | |||||
| 11 | 3400518 | Screw |
|
$ 11.68 | |||||
| 12 | 4455644 | Gusset |
|
- | |||||
| 13 | 4455648 | Support, Channel |
|
- | |||||
| 14 | W10015720 | Brace, Rear |
|
- | |||||
| 15 | W10157569 | Trim, Front (left) |
|
- | |||||
| 15 | W10157568 | Trim, Front (right) |
|
- | |||||
| 16 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | W10157566 | Side Chassis (right) |
|
- | |||||
| 17 | W10157565 | Side Chassis (left) |
|
- | |||||
| 18 | W10015730 | Box, Terminal |
|
- | |||||
| 19 | WP9759118 | Plate (Replaces: 9759118) |
|
$ 132.80 | |||||
| 20 | 9760482 | Cover, Terminal Box |
|
- | |||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453202) |
|
$ 167.49 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 4457278 | Jumper, Cancel Switch |
|
- | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 9760828 | Conduit |
|
- | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 17.33 | ||||||
| 9761059 | Cord, Power |
|
$ 100.54 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | |||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 8301282 | Spud Kit |
|
$ 70.32 | ||||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453141) |
|
$ 167.49 | ||||||
| 4453191 | Seal, Access Panel |
|
- | ||||||
| W10172604 | Harness, Main |
|
- | ||||||
| 8303865 | Harness, Latch |
|
$ 76.33 | ||||||
| 4456552 | Harness, Spark Module |
|
- | ||||||
| 4456628 | Harness, Wire (ignitor 42``) |
|
$ 95.35 | ||||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 9761106 | Jumper, Oven Light |
|
- |
