Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10171407 Deflector, Flue Appelez-nous -
2 W10171406 Panel, Cooling Vent Appelez-nous -
3 9759837 Blower Special Order $ 279.73

4 9758953 Vent-bottom Appelez-nous -
6 9760587 Transformer, Control Special Order $ 112.69

7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 W10171408 Bracket, Mounting Cooling Fan Appelez-nous -
11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

14 4457220 Side, Control Top (left) Appelez-nous -
14 4452442 Side, Control Top (right) Appelez-nous -
15 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

16 8302210 Control, Zodiac Special Order $ 265.81

17 WP4451985 Suppressor   (Replaces: 4451985) Special Order $ 148.69

18 W11684512 Screw   (Replaces: 3400080) Special Order $ 12.69

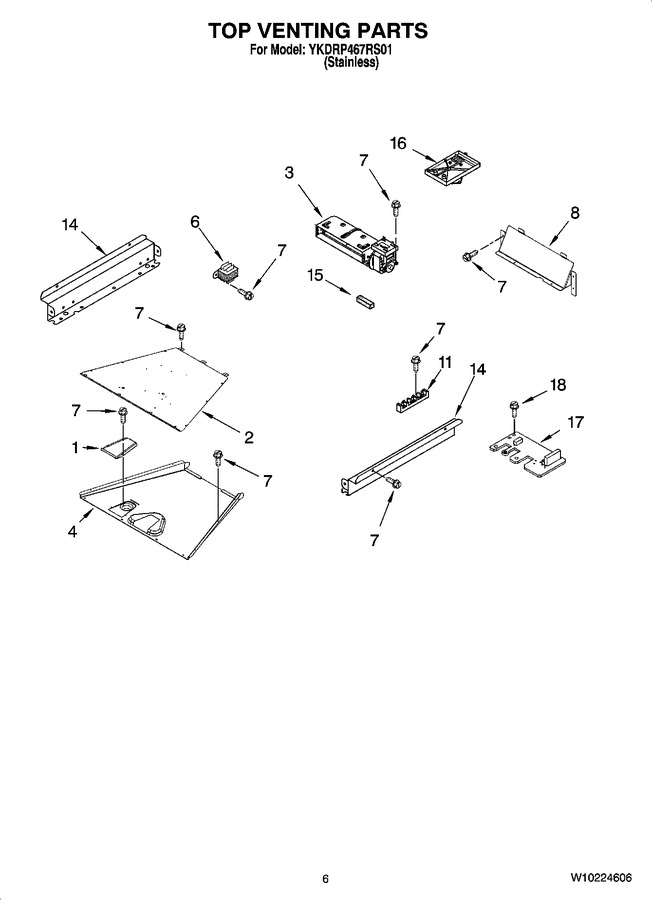

    View Diagram in Separate Window     Print Icon   Print Part List
