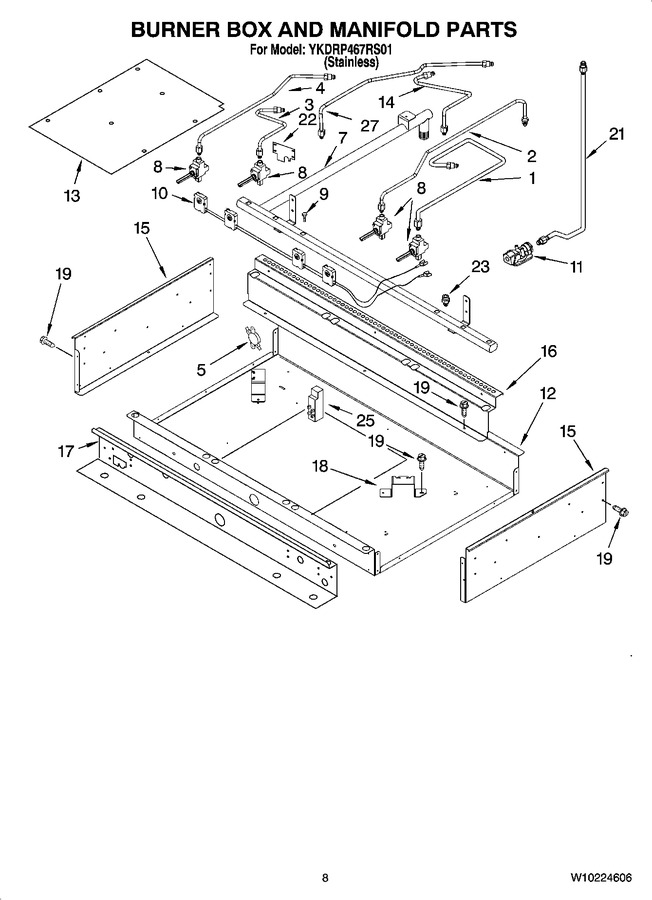

07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300231		Tubing, Gas Burner - Rf		Appelez-nous	-
2	8300230		Tubing, Gas Burner - Rr		Appelez-nous	-
3	8300187		Tubing, Gas Burner - Lf		Appelez-nous	-
4	8300188		Tubing, Gas Burner - Lr		Appelez-nous	-
5	WPW10017820		Thermostat   (Replaces: W10017820)				$ 194.84
7	4457248		Manifold Assembly Right Side		Appelez-nous	-
8	4456818		Valve, Burner (bronze)				$ 231.30
8	WP4456816		Valve, Burner (red)   (Replaces: 4456816)			Immediately	$ 286.55
9	8523704		Bolt, Gas Valve		Appelez-nous	-
10	4456903		Burner Switch & Harness Assembly				$ 113.53
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
11	WP9759091		Pressure Regulator   (Replaces: 9759091)			Immediately	$ 291.80
12	9762135		Box, Burner		Appelez-nous	-
13	8284964		Plate, Burner Holder		Appelez-nous	-
14	8300229		Tubing, Gas Burner - Cf		Appelez-nous	-
15	8285607		Side, Burner Box (right)		Appelez-nous	-
15	8285606		Side, Burner Box (left)		Appelez-nous	-
16	9759140		Support, Rear		Appelez-nous	-
17	9760558		Support, Cooktop		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
21	8301252		Tube, Manifold		Appelez-nous	-
22	8301589		Cover, Manifold		Appelez-nous	-
23	4453116		Adapter (1/2`` Female)				$ 153.80
23	4453115		Adapter (1/2`` Male)				$ 108.60
23	8284796		Plug, Close		Appelez-nous	-
23	WP4450118		Nut, 6-32 U Type   (Replaces: 4450118)				$ 7.16
25	WPW10110486		Module, Spark   (Replaces: W10110486)				$ 285.33
27	8300232		Tubing, Gas Burner - Cr		Appelez-nous	-
