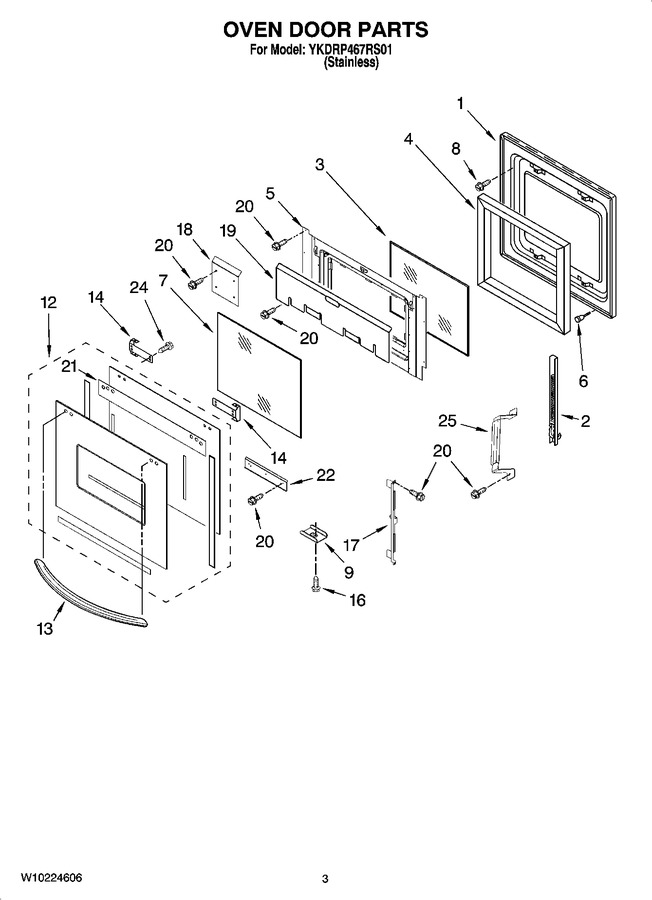

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300152		Door Liner				$ 148.16
2	WP9760579		Hinge, Door (right)   (Replaces: 9760579)			Immediately	$ 64.35
2	WP9760574		Hinge, Door (left)   (Replaces: 9760580)			Immediately	$ 60.36
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	8300797		Insulation, Door				$ 72.37
5	8300190		Retainer, Glass		Appelez-nous	-
6	4448520		Bumper, Door				$ 19.07
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	9759634		Retainer, Glass		Appelez-nous	-
12	8300162		Assembly, Door Glass		Appelez-nous	-
13	9760548		Door Handle		Appelez-nous	-
14	4455803		Bracket, Handle (right)				$ 30.70
14	4455804		Bracket, Handle (left)				$ 25.95
16	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
17	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
18	8301084		Shield, Top Heat		Appelez-nous	-
19	8300971		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	8300153		Seal, Door Top		Appelez-nous	-
22	9762144		Shield, Bottom Heat		Appelez-nous	-
24	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
25	9759230		Bracket (3rdglass)				$ 36.30
