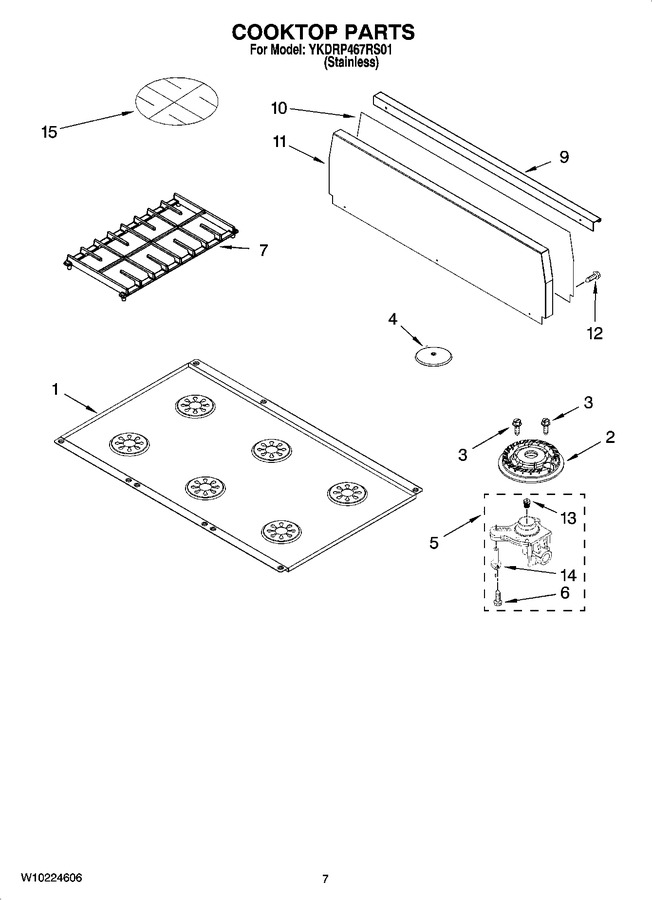

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760871		Cooktop		Appelez-nous	-
2	4455849		Burner Head (turbi)				$ 47.68
2	4455979		Burner Head (auxi)				$ 28.52
3	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
4	WP8284669		Cap, Burner ((6k))   (Replaces: 8284669)			Immediately	$ 64.79
4	4455243		Cap, Burner ((14k))				$ 41.37
5	W10128449		Orifice Holder (auxi (5k) (includes Orific & Ignitor))		Appelez-nous	-
5	WPW10155786		Orifice Holder (turbi (14k))   (Replaces: W10155786)			Immediately	$ 102.16
6	WP8273062		Screw, Spark Electrode   (Replaces: 8273062)			Immediately	$ 7.12
7	4457149		Grate, Burner		Appelez-nous	-
9	W10157520		Trim, Island		Appelez-nous	-
10	9762603		Support, Backsplash		Appelez-nous	-
11	W10157567		Trim, Backsplash		Appelez-nous	-
12	WP3400805		Screw   (Replaces: 3400837)				$ 6.47
13	8286473		Orifice (auxi (5k))				$ 73.44
13	3192525		Orifice (turbi (14k))				$ 38.58
14	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
15	4455109		Plate, Simmer				$ 52.31
