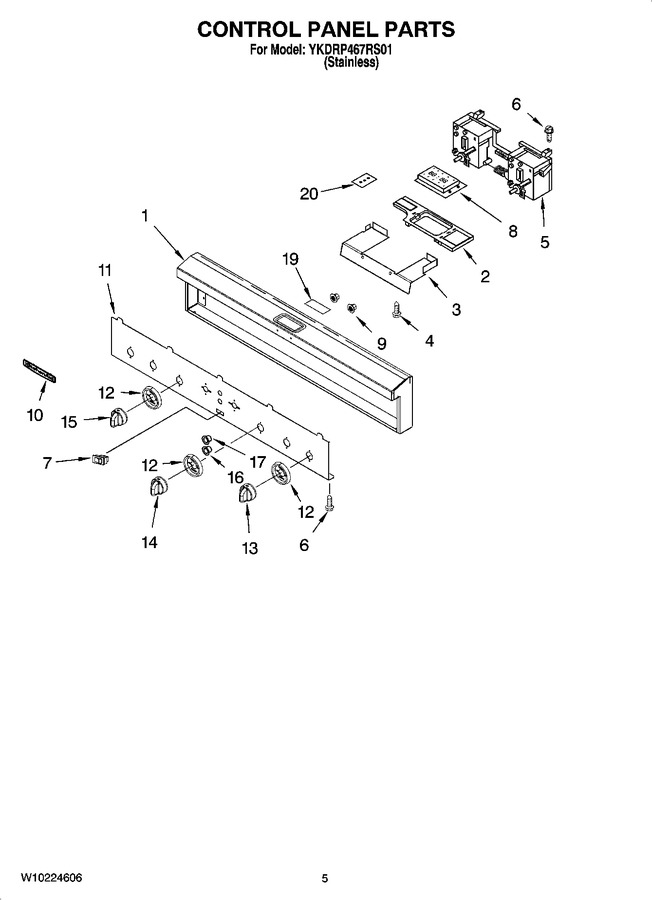

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170121		Panel, Control		Appelez-nous	-
2	4453000		Bracket, Display		Appelez-nous	-
3	8300805		Bracket, Display Mounting		Appelez-nous	-
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
5	8300203		Control		Appelez-nous	-
6	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
7	WP4452842		Switch, Rocker   (Replaces: 4452842)				$ 89.53
8	WP4452999		Module, Display   (Replaces: 4452999)			Immediately	$ 293.49
9	WP2004333		Palnut   (Replaces: 2004333)				$ 9.63
10	2005292		Nameplate				$ 52.20
11	W10199070		Face, Control Panel		Appelez-nous	-
12	W10018520		Bezel, Knob		Appelez-nous	-
13	WPW10078400		Knob, Control   (Replaces: W10078400)				$ 6.26
14	4455115		Knob, Temp/time				$ 21.22
15	4455141		Knob, Selector				$ 21.38
16	4457218		Button, Cancel				$ 59.40
17	WP4452997		Button, Enter   (Replaces: 4452997)				$ 127.36
19	W10131086		Glass, Display		Appelez-nous	-
20	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33
