SELECT A DIAGRAM

02 - Main Top


03 - Oven Burner


04 - Lower Oven Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Blower


08 - Control Panel, Lit/optional


09 - Rotisserie Kit, Griddle

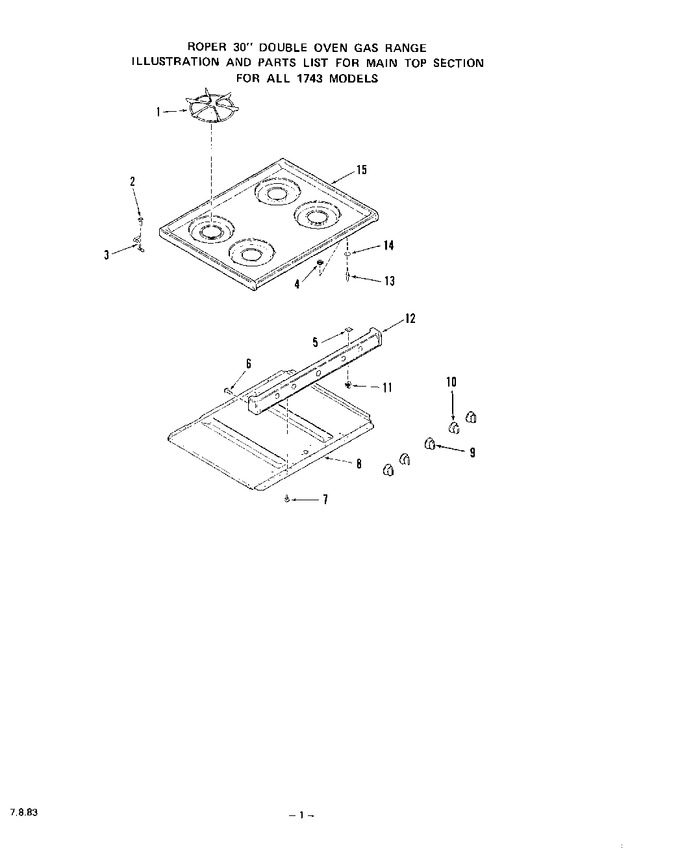

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	316365		Screw 10-32x7/16``		Appelez-nous	-
3	323404		Hinge (right)		Appelez-nous	-
3	323405		Hinge (left)		Appelez-nous	-
4	239764		Hex Nut 8-32		Appelez-nous	-
5	310218		Washer		Appelez-nous	-
6	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
7	239113		Screw 10-32x3/8``		Appelez-nous	-
8	323918		Burner Box Bottom		Appelez-nous	-
9	325513		Knob - Thermostat		Appelez-nous	-
10	325512		Knob - Gas Valve (4 Req)		Appelez-nous	-
11	24667		Catch - Main Top Strike		Appelez-nous	-
12	326147		Manifold Panel (almond)		Appelez-nous	-
12	325344		Manifold Panel (black)		Appelez-nous	-
12	326143		Manifold Panel (white)		Appelez-nous	-
12	326145		Manifold Panel (golden Wheat)		Appelez-nous	-
13	299784		Strike		Appelez-nous	-
14	99279		Washer		Appelez-nous	-
15	316813		Main Top (white)		Appelez-nous	-
15	322876		Main Top (chrome)		Appelez-nous	-
15	316814		Main Top (almond)		Appelez-nous	-
15	316815		Main Top (golden Wheat)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
