SELECT A DIAGRAM

02 - Main Top


03 - Oven Burner


04 - Lower Oven Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Blower


08 - Control Panel, Lit/optional


09 - Rotisserie Kit, Griddle

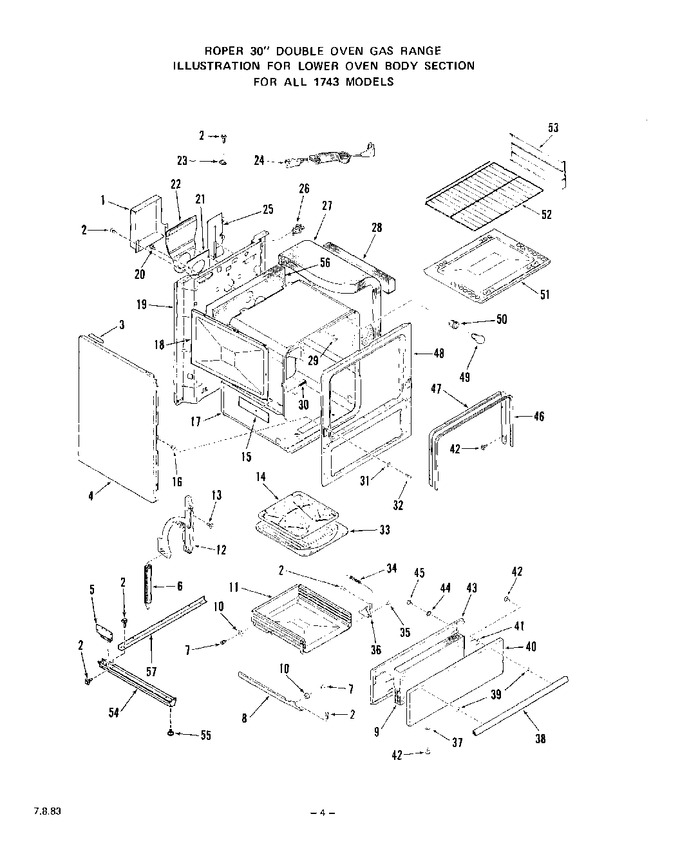

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296011		Shield - Flue Deflector		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	303513		Spacer-main Top (lt. Or Rt.)		Appelez-nous	-
4	323942		Body Side-lt. Or Rt.) (almond)		Appelez-nous	-
4	323941		Body Side-lt. Or Rt.) (golden Wheat)		Appelez-nous	-
4	323938		Body Side-lt. Or Rt.) (white)		Appelez-nous	-
5	324212		Bracket-support & Base (lt. Or Rt.)		Appelez-nous	-
6	296170		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
7	70275		Shoulder Rivet		Appelez-nous	-
8	296327		Broiler Drawer Guide (inc`s. 7 & 10) (right)		Appelez-nous	-
8	WP691371		Broiler Drawer Guide (inc`s. 7 & 10) (left)   (Replaces: 296326)			Immediately	$ 64.81
9	W10820036		Insulation-broiler Door (2 Req.)   (Replaces: 296141)			Immediately	$ 27.45
10	69006		Roller		Appelez-nous	-
11	303904		Broiler Drawer (inc`s. 7 & 10)		Appelez-nous	-
12	303133		Hinge-oven Door (left)		Appelez-nous	-
12	303132		Hinge - Oven Door (right)		Appelez-nous	-
13	112013		Screw 10-32 X 5/8``		Appelez-nous	-
14	313071		Broiler Pan Grid		Appelez-nous	-
15	314487		Retainer-insulation (rt. Or Lt.)		Appelez-nous	-
16	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
17	323854		Oven Body		Appelez-nous	-
18	324188		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
19	325281		Main Back		Appelez-nous	-
20	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
21	296010		Gasket		Appelez-nous	-
22	300917		Flue Deflector		Appelez-nous	-
23	97047		Clip (for Key 24)		Appelez-nous	-
24	312353		Range Service Cord		Appelez-nous	-
25	325519		Shield - Oven Light Wire		Appelez-nous	-
26	232150		Disconnect		Appelez-nous	-
27	296139		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
28	W10820036		Insulation-rt. Or Lt.   (Replaces: 296141)			Immediately	$ 27.45
29	115533		Clip-thermostat Bulb		Appelez-nous	-
30	296097		Dart-button Head (2 Req)		Appelez-nous	-
31	303963		Washer		Appelez-nous	-
32	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
33	290171		Broiler Pan		Appelez-nous	-
34	67017		Spring - Broiler Door (rt Or Lt)		Appelez-nous	-
35	305064		Shoulder Rivet		Appelez-nous	-
36	296125		Hinge-broiler Door (left)		Appelez-nous	-
36	296124		Hinge - Broiler Door (right)		Appelez-nous	-
37	21067		Washer		Appelez-nous	-
38	292240		Handle-broiler Door		Appelez-nous	-
39	302343		Spacer		Appelez-nous	-
40	324696		Front Panel - Broiler Door (black)		Appelez-nous	-
40	296131		Front Panel-broiler Door (white)		Appelez-nous	-
40	308977		Front Panel-broiler Door (golden Wheat)		Appelez-nous	-
40	308346		Front Panel-broiler Door (almond)		Appelez-nous	-
41	296137		Spacer-rt. Or Lt.		Appelez-nous	-
42	316365		Screw 10-32x7/16``		Appelez-nous	-
43	296332		Lining - Broiler Door		Appelez-nous	-
44	69603		Lockwasher		Appelez-nous	-
45	239113		Screw 10-32x3/8``		Appelez-nous	-
46	296102		Seal - Oven Door		Appelez-nous	-
47	296103		Retainer - Oven Door Seal		Appelez-nous	-
48	323796		Front Frame		Appelez-nous	-
49	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
50	295974		Holder-oven Lamp		Appelez-nous	-
51	296070		Oven Bottom		Appelez-nous	-
52	305408		Oven Rack (2 Req)		Appelez-nous	-
53	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
54	323929		Base W/levelers (lt Or Rt)		Appelez-nous	-
55	69065		Leg Leveler (4 Req)		Appelez-nous	-
56	296140		Insulation - Oven Back		Appelez-nous	-
57	323931		Strap - Main Back & Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
