Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

2 325743 Baffle - Airway Appelez-nous -
3 306587 Foam Strip Appelez-nous -
4 325380 Side - Compartment Appelez-nous -
5 325723 Air Duct Appelez-nous -
6 326281 Front - Blower Mounting Plate Appelez-nous -
7 326280 Fan Blade Appelez-nous -
8 326279 Support - Blower Motor Appelez-nous -
9 326278 Motor - Blower Appelez-nous -
10 236313 Keps Nut 6-32 Appelez-nous -
11 70286 Set Screw 10-32 Appelez-nous -
12 325382 Mounting Plate - Blower Appelez-nous -
13 109180 Convenience Outlet (2 Req) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

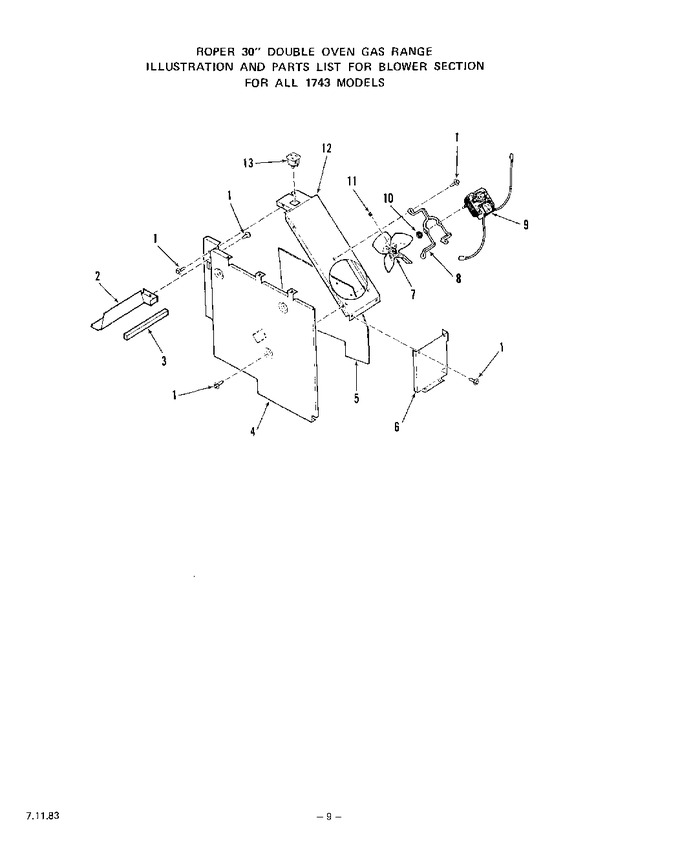

Diagram for 1743W0A
