View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Main Top
03 - Oven Burner
04 - Lower Oven Body
05 - Lower Oven Door
06 - Upper Oven Pedestal
07 - Blower
08 - Control Panel, Lit/optional
09 - Rotisserie Kit, Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

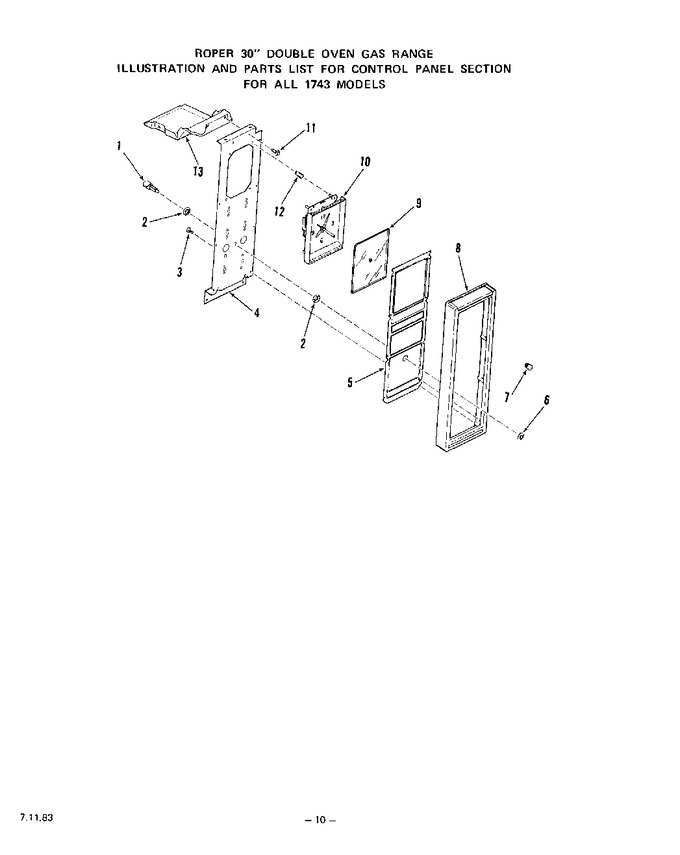

| 1 | 307573 | Push Switch - Oven Light |
|
- | |||||
| 2 | 236129 | Pal Nut 3/8-27 |
|
- | |||||
| 3 | 315617 | Screw 4-24x1/4`` |
|
- | |||||
| 4 | 325268 | Mounting Panel - Controls |
|
- | |||||
| 5 | 326693 | Control Curtain (inc`s. 8) |
|
- | |||||
| 6 | 321667 | Trim Nut |
|
- | |||||
| 7 | 109225 | Knob-clock (start & Stop Time) |
|
- | |||||
| 8 | 326692 | Control Panel Trim W/top & Bottom Inlays |
|
- | |||||
| 9 | 325334 | Lens - Clock |
|
- | |||||
| 10 | 325333 | Clock W/4 Hr. Timer |
|
- | |||||
| 11 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 12 | 293577 | Tubular Clip |
|
- | |||||
| 13 | 324000 | Gas Use & Care Guide |
|
- | |||||
| 13 | 325499 | Repair Parts List |
|
- | |||||
| 13 | 325165 | Operating Guide |
|
- | |||||
| 13 | 325159 | Installation & Reference Guide |
|
- | |||||
| 13 | 326354 | Barrier Intrusion |
|
- | |||||
| 13 | 326870 | Switches - Gas Valve |
|
- | |||||
| 13 | 325405 | Main |
|
- | |||||
| 323283 | Module |
|
- |
