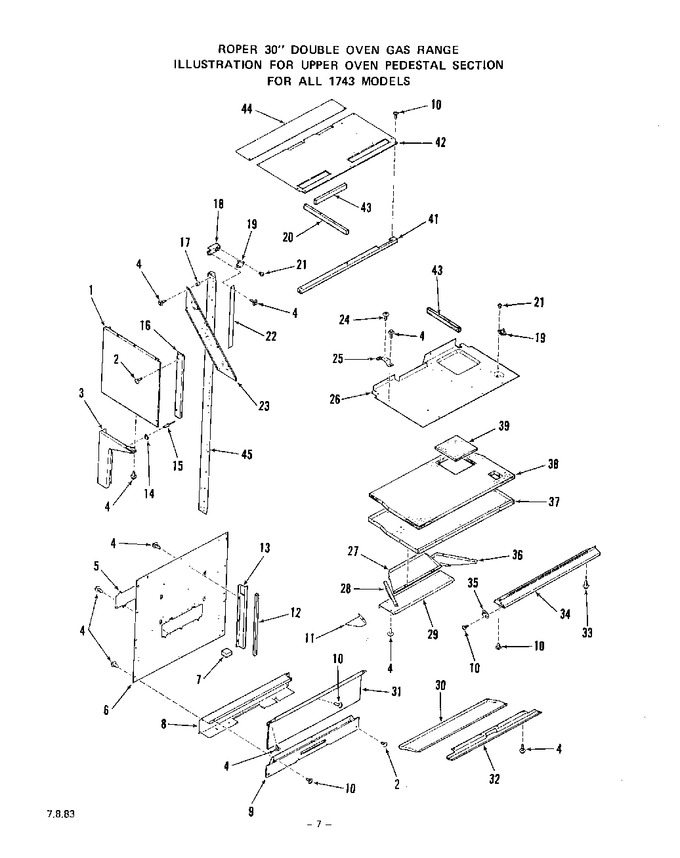

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	325316		Upper Oven Body Side (white - Right)		Appelez-nous	-
1	325320		Upper Oven Body Side (almond - Right)		Appelez-nous	-
1	325314		Upper Oven Body Side (almond - Left)		Appelez-nous	-
1	325319		Upper Oven Body Side (golden Wheat - Right)		Appelez-nous	-
1	325313		Upper Oven Body Side (golden Wheat - Left)		Appelez-nous	-
1	325310		Upper Oven Body Side (white - Left)		Appelez-nous	-
2	295268		Screw 6-32x3/8``		Appelez-nous	-
3	325283		Pedestal-upper Oven (white - Right)		Appelez-nous	-
3	325289		Pedestal-upper Oven (white - Left)		Appelez-nous	-
3	325292		Pedestal-upper Oven (golden Wheat - Left)		Appelez-nous	-
3	325286		Pedestal-upper Oven (golden Wheat - Right)		Appelez-nous	-
3	325293		Pedestal-upper Oven (almond - Left)		Appelez-nous	-
3	325287		Pedestal-upper Oven (almond - Right)		Appelez-nous	-
4	311384		Screw 10-32x7/16``		Appelez-nous	-
5	322992		Cover Plate		Appelez-nous	-
6	325773		Wire Cover - Upper Oven		Appelez-nous	-
7	326696		Foam Strip-rt. Or Lt.		Appelez-nous	-
8	323956		Wire Cover		Appelez-nous	-
9	325902		Lower Backsplash		Appelez-nous	-
10	303820		Screw 6-32 X 3/8``		Appelez-nous	-
11	322933		End-vent (left)		Appelez-nous	-
11	322935		End - Vent (right)		Appelez-nous	-
12	326697		Foam Strip (left)		Appelez-nous	-
12	305749		Foam Strip (right)		Appelez-nous	-
13	325726		Airway - Side (left)		Appelez-nous	-
13	325728		Airway - Side (right)		Appelez-nous	-
14	285523		Retainer-lt. Or Rt.		Appelez-nous	-
15	101523		Pop Rivet		Appelez-nous	-
16	325330		Side Trim (right)		Appelez-nous	-
16	325492		Side Trim (left)		Appelez-nous	-
17	325308		Spacer (4 Req)		Appelez-nous	-
18	326303		Box - Auxiliary Thermostat		Appelez-nous	-
19	325401		Auxiliary Thermostat		Appelez-nous	-
20	325029		Foam Strip		Appelez-nous	-
21	230710		Screw 4-40x1/4``		Appelez-nous	-
22	326417		Cover - Wire Support		Appelez-nous	-
23	325388		Brace-cabinet Side		Appelez-nous	-
24	239114		Screw 10-32x1/2``		Appelez-nous	-
25	325704		Support - Microwave (4 Req)		Appelez-nous	-
26	325303		Base - Microwave		Appelez-nous	-
27	322937		Baffle - Vent		Appelez-nous	-
28	322949		Vent Side-left		Appelez-nous	-
29	320261		Bottom-vent		Appelez-nous	-
30	321660		Cover-vent (white)		Appelez-nous	-
30	321664		Cover - Vent (almond)		Appelez-nous	-
30	321663		Cover - Vent (golden Wheat)		Appelez-nous	-
31	325350		Backsplash (almond)		Appelez-nous	-
31	325346		Backsplash (white)		Appelez-nous	-
31	325349		Backsplash (golden Wheat)		Appelez-nous	-
32	323824		Trim-filter (almond)		Appelez-nous	-
32	323823		Trim Filter (golden Wheat)		Appelez-nous	-
32	323820		Trim-filter (white)		Appelez-nous	-
33	316365		Screw 10-32x7/16``		Appelez-nous	-
34	325471		Lower Trim		Appelez-nous	-
35	325338		End Cap (right)		Appelez-nous	-
35	325337		End Cap (left)		Appelez-nous	-
36	320257		Vent Side-right		Appelez-nous	-
37	325297		Bottom - Oven Cabinet		Appelez-nous	-
38	325299		Insulation - Oven Cabinet Bottom		Appelez-nous	-
39	326031		Insulation-microwave Base (1 Req)		Appelez-nous	-
41	325328		Top Trim		Appelez-nous	-
42	325325		Oven Top Cover (golden Wheat)		Appelez-nous	-
42	325322		Oven Top Cover (white)		Appelez-nous	-
42	325326		Oven Top Cover (almond)		Appelez-nous	-
43	324504		Foam Strip		Appelez-nous	-
44	321671		Rear Cover-oven Top (golden Wheat)		Appelez-nous	-
44	321672		Rear Cover-oven Top (almond)		Appelez-nous	-
44	320476		Rear Cover-oven Top (white)		Appelez-nous	-
45	325802		Support - Upper Oven (right)		Appelez-nous	-
45	325307		Support - Upper Oven (left)		Appelez-nous	-
